Modular Contactor
Application

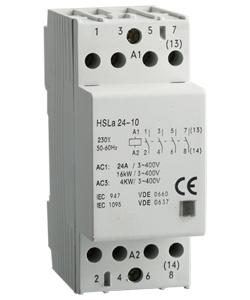

JVC1

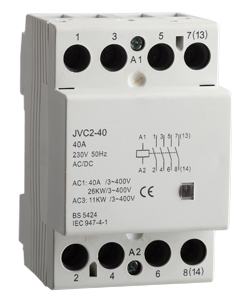

JVC2
- JVC modular contactor is applicable to alternative circuit with rated voltage up to 400V, rated current up to 24A and rated frequency 50/60Hz. The product is used for remote switching and controlling of power circuit.
- IEC61095
Advantage
- Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
- Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
- The fast and flexible production form aim at the customer require;
- The deliveries exactly in accordance with customer orders
- The fast transportation.
- Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.
Normal operation and mounting requirement
- Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
- Altitude above sea level less than 2000 m.
- Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
- Installation class II or III.
- Pollution class 2.
- Installation method DIN Rail mounting type.
- The external magnetism shall not be more than 5 times of terrestrial one.
- Product shall be installed at the place where there shall be no severe impact and vibration.
- Product shall be vertically mounted onto standard Din rail 35mm.
Technical Data
| Rated Current (A) | 20, 24, 40 |
| Rated Voltage (V) | 230V 2P, 4P |
| 400V 4P | |
| Rated Frequency(Hz) | 50/60Hz |
| Electrical endurance | 30, 000 cycles |
| Mechanical endurance | 100, 000 cycles |
| Ambient temp. | pillar terminal with clamp |
| Installation | On symmetrical DIN Rail |
| Panel mounting |
- Power circuit
- Remote control circuit (coil)
Dimensioned
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
