LC1-K
Application

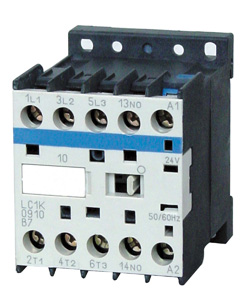

LC1-K06, 09, 12
- LC1-K series AC contactor is suitable for use in the circuit up to the rate and frequentstarting, controlling the AC motor. The addition of auxiliary contact group to the contactor, com-bined with the proper thermal relay, can act to protect the circuit bound to overload.
- It conformsto IEC60947-4-1.
Technical Data
| Type | LC1-K06 | LC1-K09 | LC1-K12 | ||
| Rating working voltage(V) | 380V | AC-3 | 6 | 9 | 12 |
| AC-4 | 2.6 | 3.5 | 5 | ||
| Appointed heating current(A) | 16 | 20 | 20 | ||
| The max current when turn on(A) | 380V | 60 | 90 | 120 | |
| 660V | 72 | 108 | 144 | ||
| The max current for turn off(A) | 380V | 48 | 72 | 96 | |
| 660V | 60 | 90 | 120 | ||
| Three phases cage motors power which can be pulled AC3(KW) |
220v | 1.5 | 2.2 | 3 | |
| 380v | 2.2 | 4 | 5.5 | ||
| 660v | 3 | 4 | 4 | ||
| Operation frequency(time/hour) | Electricity life(x104) | AC-3 | 1200 | ||
| AC-4 | 300 | ||||
| Electrical lfie | AC-3 | 5x106 | |||
| AC-4 | 1x105 | ||||
| Mechanical life | 3x106 | ||||
