LA1-DN Auxiliary Contact Block
Application

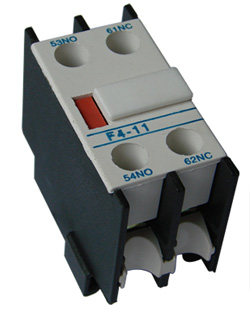

LA1-DN
LA1-DN
- LA1-DN series auxiliary contactor blocks are mainly used in the circuit AC-15, 50Hz, rated voltage up to 380V, rated current up to 0.95A; or in the circuit DC-13, rated voltage up to DC220V, rated current up to 0.15A, which are installed at the top of control reply or LC1-D AC contactor for expanding the couples of auxiliary contacts points, Owing to adopting the contacting functions of sliding friction, the item can be self-cleaning & ensuring the electric circuit to be reliable.
Technical Data
| Type | Rated Insulated Voltage (V) |
Conventional Thermal Current (A) |
Rated Control Capacity |
Rated Working Current (A) |
Operating Frequency (times/h) |
Mechanical Life (104) |
Electric Life (104) |
| LA1-DN11 | 690V | 10A | AC-15 360VA DC-13 33(W) |
AC-15 380V 0.95A DC-13 220V 0.15A |
3600 | 1000 | 100 |
| LA1-DN20 | |||||||
| LA1-DN02 | |||||||
| LA1-DN22 | |||||||
| LA1-DN13 | |||||||
| LA1-DN31 | |||||||
| LA1-DN40 | |||||||
| LA1-DN04 | |||||||
| LA8-DN11 | |||||||
| LA8-DN20 | |||||||
| LA8-DN02 |
Air Time Delay Contact
Application
LA2
LADT2
LADS2
- LA2-D timer delay auxiliary contact blocks are combined with LC1-D AC contactor & LA1-D auxiliary contact block into LC3-D star delta reduced voltage starter to start motor.
Technical Data
| Model | Delay Range | Numer of the delay contacts | |
| Old Type | New Type | ||
| LA2-DT0 | LADT0 | 0.1~3s | NO+NC |
| LA2-DT2 | LADT2 | 0.1~30s | NO+NC |
| LA2-DT4 | LADT4 | 10~180s | NO+NC |
| -- | LADS2 | 1~30s | NO+NC |
| LA3-DR0 | LADR0 | 0.1~3s | NO+NC |
| LA3-DR2 | LADR2 | 0.1~30s | NO+NC |
| LA3-DR4 | LADR4 | 10~180s | NO+NC |
Bobbin Of AC Contactor
Technical Data
| Type | Applied Contactor |
| LX1-D2 | LC1-D09 to LC1-D18 |
| LX1-D4 | LC1-D25 to LC1-D32 |
| LX1-D6 | LC1-D40 to LC1-D95 |
| LX1-FF | LC1-F115 to LC1-F150 |
| LX1-FG |
LC1-F185 to LC1-F225 |
| LX1-FH | LC1-F265 to LC1-F330 |
| LX1-FJ | LC1-F400 |
| LX1-FK | LC1-F500 |
| LX1-FL | LC1-F630 |
| LX1-FK(1) | LC1-F780 |
