Cylindrical Fuse Links

Applications

• Protection against overload and short circuit in electric lines (type gG), also available for protection of semiconductor parts and equipment’s against short-circuit (type aR) and protection of motors(type aM).
• Rated voltage up to 660V; Rated current up to 125A; Working frequency 50Hz AC; Rated breaking capacity up to 100KA.Compliant with GB13539 and IEC269.

Design Features

• Variable cross-section fuse element made from pure metal sealed in cartridge made from high-duty ceramic or epoxy glass. Fuse tube filled with chemically treated high-purity quartz sand as arc-extinguishing medium. Dot-welding of fuse element ends to the caps ensures reliable electric connection; Striker may be attached to the fuse link to provide immediate activation of micro-switch to give various signals or cut the circuit automatically.
• Special fuse as per Figure 2~4 can be supplied according to customers’ requirements.

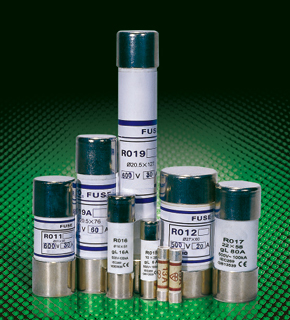

Table 1

Types				Rated voltage(V)	Rate current(A)	Dimension(mm)		Weight(g)
Ours		Cross-reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Fig.	ΦD x L
RO06	RS06	--	--	250/380	1~32	Figure 1	Φ12.7 x 29	6.5
RO07	RS07	--	--	600	10~100	Figure 1	Φ30 x 57	75
RO09	RS09	--	--	500	2~63	Figure 1	Φ18 x 37	17.4
RO10	RS10	--	--	500	2~63	Figure 1	Φ18 x 50	23.5
RO11	RS11	AJT JKS LPJ	ACL	600	2~32	Figure 1	Φ21 x 58	51.5
RO12	RS12	AJT JKS LPJ	ACL	600	35~100	Figure 1	Φ27 x 60	90
RO13	RS13	--	--	500	2~40	Figure 1	Φ15 x 50	23.2
RO14	RS14	RT19-16 gF1	--	500	0.5~20	Figure 1	Φ8.5 x 31.5	4.4
RO14A	RS14A	--	--	250	0.5~20	Figure 1	Φ8.5 x 23	3.5
RO14B	RS14B	--	--	380/500	0.5~20	Figure 1	Φ8.5 x 36	5.0
RO15	RS15	RT14-20 gF2 RT18-32 RT19-25	KTK KLM	380/500	0.5~32	Figure 1	Φ10.3 x 38	7.7
RO15A	RS15A	--	--	250	0.5~16	Figure 1	Φ10.3 x 25.8	4.8
RO15B	RS15B	--	--	250/500	0.5~25	Figure 1	Φ10.3 x 31.5	5.8
RO15C	RS15C	--	--	380/500	0.5~32	Figure 1	Φ10.3 x 34	6.2
RO15D	RS15D	--	--	600	2~32	Figure 1	Φ10.3 x 57	11
RO16	RS16	RT14-32 gF3 RT18-63 RT19-40	EWP	380/660	2~50	Figure 1	Φ14.3 x 51	20.5
RO16A	RS16A	--		500	2~50	Figure 1	Φ14.3 x 38	15.6
RO16B	RS16B	--	--	500	2~50	Figure 1	Φ14.3 x 45	18.5
RO16C	RS16C	--	--	500	2~50	Figure 1	Φ14.3 x 67	27.5
RO17	RS17	RT14-63 gF4 RT18-125 RT19-100	--	380/660	10~125	Figure 1	Φ22.2 x 58	58
RO18	RS18	--	URE2263	380	0.5~25	Figure 1	Φ9.6 x 30	4.8
RO19	RS19	FRS TRS FLSR	--	600	0.5~32	Figure 1	Φ20.5 x 127	91.2
RO19A	RS19A	RLNR PC2	--	250/500	0.5~63	Figure 1	Φ20.5 x 76	63
RO19B	RS19B	FRS TRS FLSR	--	600	0.5~32	Figure 1	Φ20.5 x 114	85
RO19C	RS19C	--	--	600	32~63	Figure 1	Φ27 x 139	172.4
RO19D	RS19D	--	--	600	32~63	Figure 1	Φ27 x 147	160
RO54	RS54	--	--	250	0.5~16	Figure 1	Φ5 x 20	1
RO55	RS55	--	--	250	0.5~16	Figure 1	Φ5 x 25	1.3
RO56	RS56	--	--	250	0.5~16	Figure 1	Φ6 x 20	1.7
RO57	RS57	--	--	250	0.5~16	Figure 1	Φ6.3 x 25	2.1
RO58	RS58	--	--	250/500	0.5~16	Figure 1	Φ6.3 x 31.5	2.5

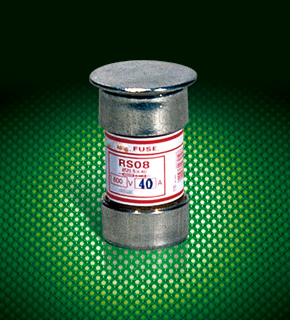

Table 2

Types				Rated voltage(V)	Rate current(A)	Dimension(mm)		Weight(g)
Ours		Cross-reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Fig.	ΦD x L
RO08	RS08	--	JJS	600	2~63	Figure 2	Φ20.5x40	40

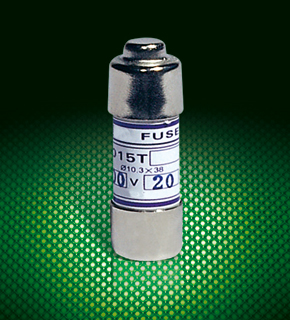

Table 3

Types				Rated voltage(V)	Rate current(A)	Dimension(mm)		Weight(g)
Ours		Cross-reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Fig.	ΦD x L
RO15T	RS15T	ATQR	KTK KLKR	380/600	0.5~32	Figure 3	Φ10.3x38	7.5

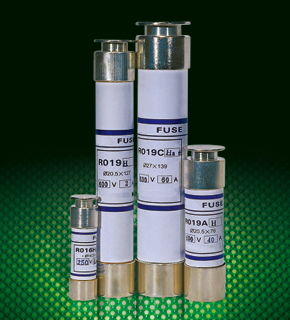

Table 4

Types				Rated voltage(V)	Rate current(A)	Dimension(mm)		Weight(g)
Ours		Cross-reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Fig.	ΦD x L
RO16H	RS16H	FRH-R	--	250	2~50	Figure 4	Φ14.3 x 51	25
RO17H	RS17H	--	--	380/500	10~125	Figure 4	Φ22.2 x 58	52
RO19H	RS19H	FRS-R	--	600	0.5~63	Figure 4	Φ20.5 x 127	82
RO19AH	RS19AH	FLNR	--	600	0.5~63	Figure 4	Φ20.5 x 76	60
RO19BH	RS19BH	--	--	600	0.5~63	Figure 4	Φ20.5 x 114	72
RO19CH	RS19CH	FRS-R	--	600	32~63	Figure 4	Φ27 x 139	148
RO19DH	RS19DH	--	-	600	32~63	Figure 4	Φ27 x 147	172

Characteristics Curve
