Power Relay
JQX-12F

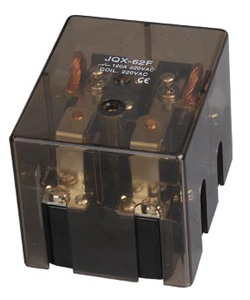

JQX-62F

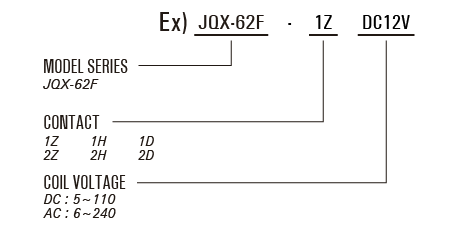

Order Code
Technical Data
>> Download PDF (488KB)
Technical Specification
| Insulation Resistance | ≥1000mΩ (500VDC) |
| Dielectric strength | Between coil and contacts ≥2500VAC1min |
| Between open contacts ≥1200VAC1min | |
| Operate/ Release time | ≤ 40ms/ 25ms |
| Terminal Type | Screw |
Contact Specification
| Contact Form | 1Z, 1H, 1D | 2Z, 2H, 2D |
| Contact Resistance | ≤100mΩ (1A 6VDC) | |
| Contact Material | AgCdO, AgSnO2 | |
| Contact Capacity | 80A 250VAC/ 30VDC 120A 250VAC/ 30VDC |
80A 250VAC/ 30VDC |
Coil Specification
| Rated Coil Power | 80A DC2.5W AC4.0VA 120A DC2.0W AC4.0VA |
Coil Date
| Nominal voltage VDC |
Operate voltage VDC |
Release voltage VDC |
Coil resistance Ω±10% |
Nominal voltage VAC |
Operate voltage VAC |
Release voltage VAC |
Coil resistance Ω±10% |
| 6 | 4.80 | 0.60 | 18 | 6 | 4.80 | 1.80 | 9 |
| 12 | 9.60 | 1.20 | 70 | 12 | 9.60 | 3.60 | 36 |
| 24 | 19..20 | 2.40 | 290 | 24 | 19.20 | 7.20 | 144 |
| 48 | 38.40 | 4.80 | 1150 | 48 | 38.40 | 14.40 | 576 |
| 60 | 48 | 6.00 | 1800 | 110 | 88.00 | 36.00 | 3500 |
| 110 | 88.0 | 11.0 | 6050 | 220/240 | 176.00 | 72.00 | 12000/14400 |

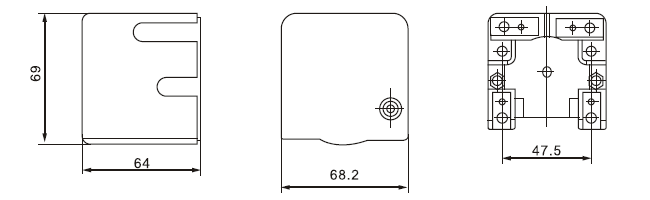

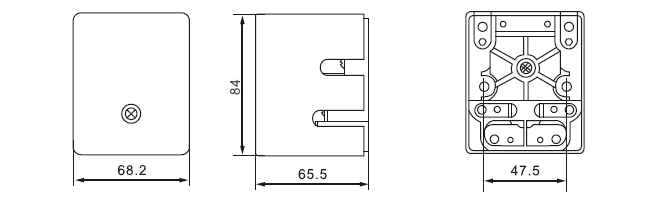

Dimension
 |
 |

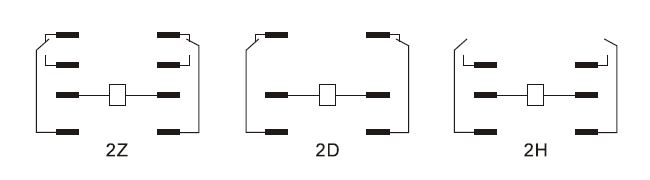

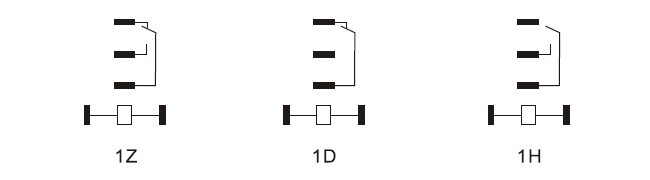

Wiring Diagram
 |
 |
