Power Relay
JQX-38F

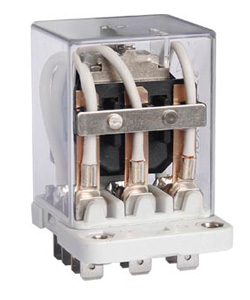

JQX-38F

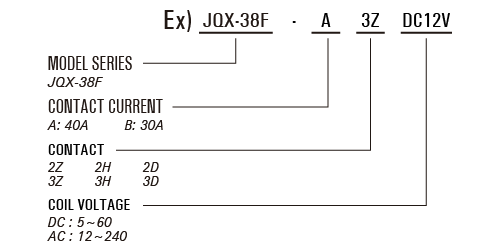

Order Code
Connection
Technical Data
>> Download PDF (205KB)
Technical Specification
| Insulation Resistance | ≥1000mΩ (500VDC) |
| Dielectric strength | Between coil and contacts ≥2500VAC1min |
| Between open contacts ≥1200VAC1min | |
| Operate/ Release time | ≤15ms/ 10ms |
| Terminal Type | PCB |
Contact Specification
| Contact Form | 2Z, 2H, 2D 3Z, 3H, 3D |
| Contact Resistance | ≤100mΩ (1A 6VDC) |
| Contact Material | AgCdO, AgSnO2 |
| Contact Capacity | A: 40A 250VAC/ 30VDC B: 30A 250VAC/ 30VDC |
Coil Specification
| Rated Coil Power | DC2.5W AC5VA |
Coil Date
| Nominal voltage VDC |
Operate voltage VDC |
Release voltage VDC |
Coil resistance Ω±10% |
Nominal voltage VAC |
Operate voltage VAC |
Release voltage VAC |
Coil resistance Ω±10% |
| 12 | 9.6 | 1.20 | 57 | 12 | 9.60 | 3.60 | 10 |
| 24 | 19.2 | 2.40 | 230 | 24 | 19.20 | 7.20 | 40.3 |
| 48 | 38.4 | 4.80 | 920 | 110 | 88.0 | 36.00 | 847 |
| 60 | 48.0 | 6.00 | 1440 | 220/240 | 176.00 | 72.00 | 3380/ 4030 |

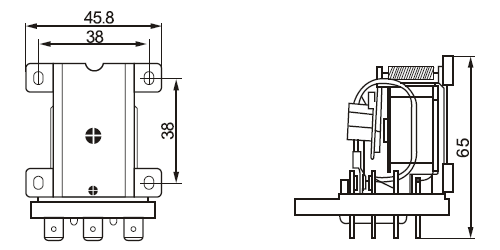

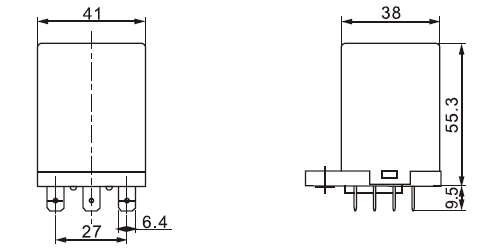

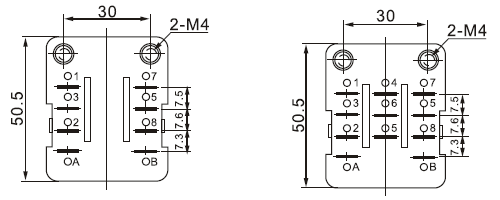

Dimension
 |
 |
 |

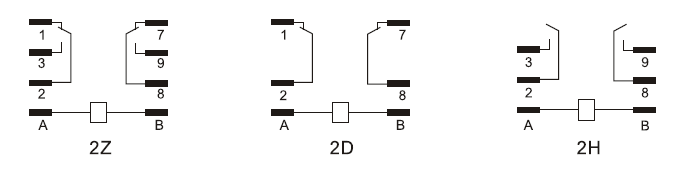

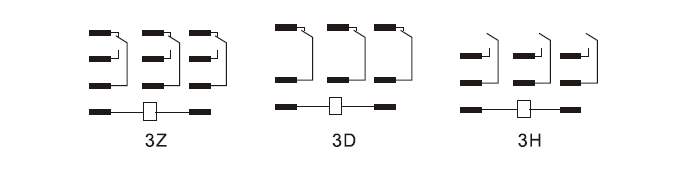

Wiring Diagram
 |
 |
