General-Purpose Relay
JQX-10F(JTX)
JQX-10F(JTX)

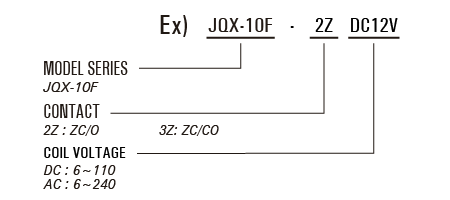

Order Code
Technical Data
>> Download PDF (441KB)
Technical Specification
| Insulation Resistance | ≥500mΩ (500VDC) |
| Dielectric strength | Between coil and contacts ≥1500VAC1min |
| Between open contacts ≥1000VAC1min | |
| Between contacts of different poles ≥1500VAC1min | |
| Operate/ Release time | ≤25ms/ 25ms |
| Terminal Type | PCB & Socket |
Contact Specification
| Contact Form | 2Z, 2H, 2D | 3Z, 3H, 3D |
| Contact Resistance | ≤50mΩ (1A 6VDC) | |
| Contact Material | AgCdO, AgSnO2 | |
| Contact Capacity | 10A 250VAC/ 30VDC | |
Coil Specification
| Rated Coil Power | 0.9W 1.2VA |
Coil Date
| Nominal voltage VDC |
Operate voltage VDC |
Release voltage VDC |
Coil resistance Ω±10% |
Nominal voltage VAC |
Operate voltage VAC |
Release voltage VAC |
Coil resistance Ω±10% |
| 6 | 4.8 | 0.60 | 40 | 6 | 4.80 | 1.80 | 5.5 |
| 12 | 9.6 | 1.20 | 80 | 12 | 9.60 | 3.60 | 24 |
| 24 | 19.2 | 2.40 | 325 | 24 | 19.2 | 7.20 | 72 |
| 48 | 38.4 | 4.80 | 1200 | 48 | 38.4 | 14.4 | 430 |
| 100 | 80.0 | 10.0 | 7550 | 110/120 | 96.0 | 36.0 | 1512 |
| 110 | 88.0 | 11.0 | 9000 | 220/240 | 176.0 | 72.0 | 6050/7200 |

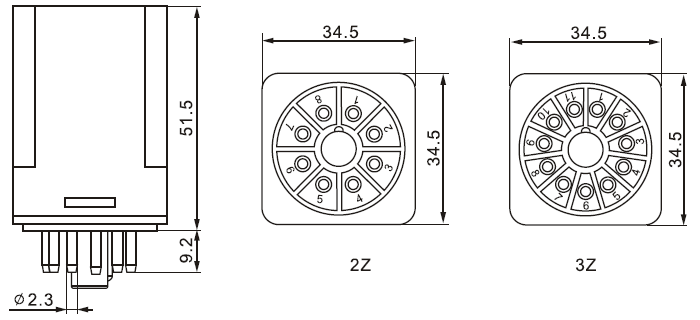

Dimension
 |

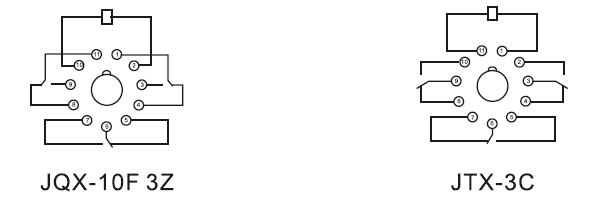

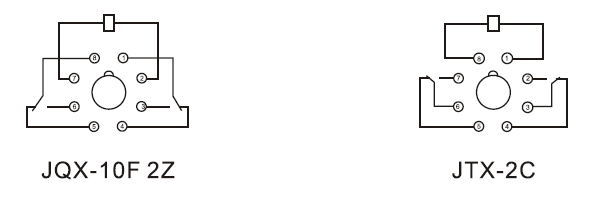

Wiring Diagram
 |
 |
