General-Purpose Relay
70.2, 70.3
70.2 70.3

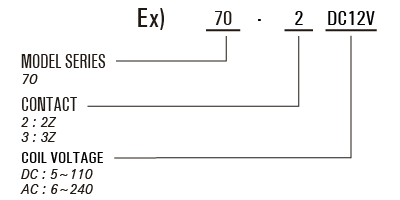

Order Code
Terminal
Technical Data
>> Download PDF (243KB)
Technical Specification
| Insulation Resistance | ≥500mΩ (500VDC) |
| Dielectric strength | Between coil and contacts ≥1500VAC1min |
| Between open contacts ≥1000VAC1min | |
| Between contacts of different poles ≥1500VAC1min | |
| Operate/ Release time | ≤25ms/ 25ms |
| Terminal Type | Socket |
Contact Specification
| Contact Form | 2Z, 2H, 2D 3Z, 3H, 3D |
| Contact Resistance | ≤50mΩ (1A 6VDC) |
| Contact Material | AgCdO, AgSnO2 |
| Contact Capacity | 10A 250VAC/ 30VDC |
Coil Specification
| Rated Coil Power | 1.5W 2.5VA |
Coil Date
| Nominal voltage VDC |
Operate voltage VDC |
Release voltage VDC |
Coil resistance Ω±10% |
Nominal voltage VAC |
Operate voltage VAC |
Release voltage VAC |
Coil resistance Ω±10% |
| 6 | 4.8 | 0.60 | 24 | 6 | 4.80 | 1.80 | 4.6 |
| 12 | 9.6 | 1.20 | 96 | 12 | 9.60 | 3.60 | 20 |
| 24 | 19.2 | 2.40 | 384 | 24 | 19.20 | 7.20 | 80 |
| 48 | 38.4 | 4.80 | 1540 | 48 | 38.4 | 14.40 | 320 |
| 100 | 80.0 | 10.0 | 6660 | 110/120 | 88.0 | 36.00 | 1700 |
| 110 | 88.0 | 11.00 | 8066 | 220/240 | 176.0 | 72.00 | 7400/8760 |

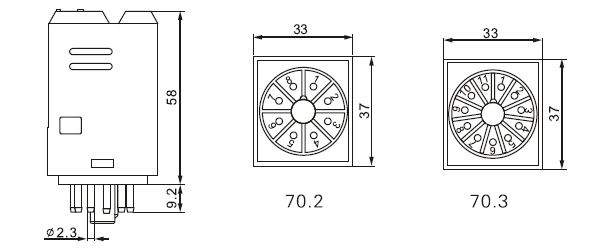

Dimension
 |

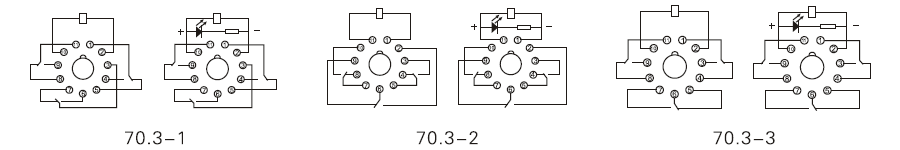

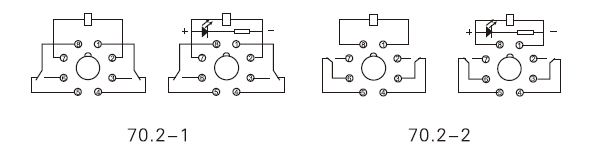

Wiring Diagram
 |
 |
