Cutting Tool

Features:

• CAC series is special for cutting angle iron, The tool has the advantage of quick cutting, no scrap iron, smooth surface of cutting flat.
• It is suit for using in bridge, high pressure of iron tower and anyplace where need use such tool, it can work outside, convenience carry and simple operation.

CAC-60	CAC-100

Technical Data

Item. No.	Cutting Force	Cutting Range	Height	Weight	Remark
CAC-60	20T	60x60x6mm	380mm	26.50kg	For cutting angle-Iron, no scrap
CAC-100	30T	100x100x10mm	390mm	30.40kg	For cutting angle-Iron, no scrap

CPC-12A		CPC-16A
CPC-22	CPC-16	CPC-12

Technical Data

Item. No.	Cutting Force	Cutting Range	Length	Weight	Package	Remark
CPC-12	8T	ф4-ф12mm	200mm	1.50kg	Steel Case	/
CPC-16	12T	ф4-ф16mm	240mm	2.10kg	Steel Case	/
CPC-22	16T	ф4-ф22mm	300mm	3.50kg	Steel Case	/
CPC-12A		ф4-ф12mm	310mm	3.60kg	Steel Case	/
CPC-16A		ф4-ф16mm	330mm	5.50kg	Steel Case	/

Screw Destroyer

Features:

• When the nuts get nutted, this nut cutting machine is most timesaving, force-saving tool, no need power.
• You also can chosse YP-24 for over head working, only need one person.

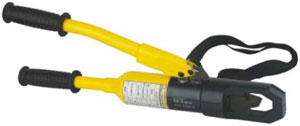

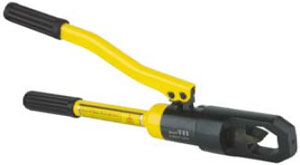

YP-24A	YP-24	FYP-41	FYP-42

Technical Data

Item. No.	Cutting Force	Stroke	Length	Weight	Package	Size of Nut	Remark
YP-24A	16T	20mm	500mm	4.50kg	Steel Case	M12-M16	/
YP-24	16T	20mm	500mm	4.50kg	Steel Case	M12-M16	/
FYP-41	16T	20mm	260mm	2.50kg	Steel Case	M22-M27	/
FYP-42	16T	20mm	200mm	1.60kg	Steel Case	M12-M16	/
