Brass Cutter

Features:

• It's ideal tools for cutting metal sheet up to 12mm.
• More precised cutting use lowest energy.
• Match Hand Pump CP-700 or Electric Pump ZCB 6-5.

CWC-150	CWC-150V	CWC-200	CWC-200V

Technical Data

Item. No.	Thickness of Sheet	Width of Sheet	Cutting Force	Height	Weight	Remark
CWC-150	Max. 10mm	150mm	15T	400mm	30kg	For cutting copper and aluminum sheet one side cut, no scrap.
CWC-150V	Max. 10mm	150mm	15T	400mm	30kg	For cutting copper and aluminum sheet two side cut, at same time, create scrap.
CWC-200 CWC-200V	Max. 12mm	200mm	20T	420mm	32.5kg	For cutting copper and aluminum sheet one side cut, no scrap.

Brass Bender

Features:

• Bend brass cutter or bent Al cutter with 90°will not hurt the brass material.
• CB-150D can be opened up, when bending long brass sheet "N" shape or "L" shape can pull the lock cut, so you can take the whole one freely.
• There is a indication of 90° and 45°.

CB-150D	CB-200A

Technical Data

Item. No.	Thickness of Sheet	Width of Sheet	Cutting Force	Height	Weight	Remark
CB-150D	Max. 10mm	150mm	16T	360mm	17.20kg	/
CB-200A	Max. 12mm	200mm	20T	370mm	24.00kg	/

Multi-Functional Line Production Machine

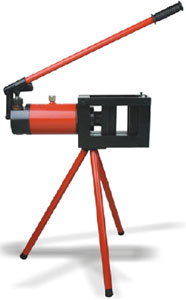

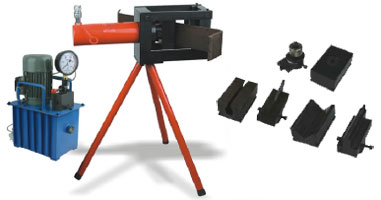

THP-120	THPS-120

Technical Data

Item. No.	Thickness of Sheet	Width of Sheet	Punching Force	Weight	Accessories	Remark
THP-120	Max. 10mm	120mm	15T	50.00kg	3/8"(Φ10.5mm2), 1/2"(Φ13.8mm2), 5/8"(Φ17mm2), 3/4"(Φ20.5mm2)	/
THPS-120	Max. 10mm	120mm	15T	45.00kg	3/8"(Φ10.5mm2), 1/2"(Φ13.8mm2), 5/8"(Φ17mm2), 3/4"(Φ20.5mm2)	Match Hand Pump CP-700 or Electric Pump ZCB 6-5

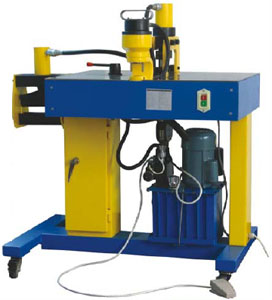

VHB-150

Technical Data

Item. No.	Dimension	Rating Oil Pressure	Cutting Force	Cutting Range	Punching Force	Distance from hole to sheet side	Punching Range	Remark
VHB-150	600x500x700mm (L X W X H)	700kg/m2	25T	150X10mm (W x Thickness)	30T	80mm	Hole Die: Φ11, Φ14, Φ18, Φ21mm	Three functions; cutting, punching and bending.
