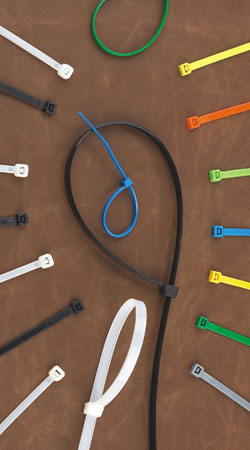

Self Locking Cable Ties
- Material:Nylon 66, 94V-2 certificated by UL.Heat-resisting,Acid & erosion control, insulate well and not apt to age.
- Operating temperature：-35℃ to 85℃.
- Color:Natural(or white, standard color),UV black and other colors are available as requested.

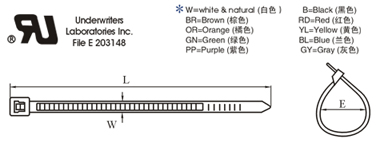

| Item No. | L | W (mm) |
Bundle diameter E (mm) |
Min. loop tensile strength | ||
| Inch | mm | LBS | KGS | |||
| CHS-3x60 | 2 3/8" | 60 | 2.5 | 2-11 | 18 | 8 |
| CHS-3x80 | 3 3/16" | 80 | 2.5 | 2-16 | 18 | 8 |
| CHS-3x90 | 2 5/8" | 90 | 2.5 | 2-18 | 18 | 8 |
| CHS-3x100 | 4" | 100 | 2.5 | 2-22 | 18 | 8 |
| CHS-3x120 | 4 3/4" | 120 | 2.5 | 2-30 | 18 | 8 |
| CHS-3x140 | 5 1/2" | 140 | 2.5 | 2-33 | 18 | 8 |
| CHS-3x150 | 6" | 150 | 2.5 | 2-35 | 18 | 8 |
| CHS-3x160 | 6 1/4" | 160 | 2.5 | 2-40 | 18 | 8 |
| CHS-3x200 | 8" | 200 | 2.5 | 2-50 | 18 | 8 |
| CHS-4x100 | 4" | 100 | 3.5 | 2-22 | 40 | 18 |
| CHS-4x120 | 4 3/4" | 120 | 3.5 | 3-30 | 40 | 18 |
| CHS-4x140 | 5 1/2" | 140 | 3.5 | 3-33 | 40 | 18 |
| CHS-4x150 | 6" | 150 | 3.5 | 3-35 | 40 | 18 |
| CHS-4x180 | 7" | 180 | 3.5 | 3-42 | 40 | 18 |
| CHS-4x200 | 8" | 200 | 3.5 | 3-50 | 40 | 18 |
| CHS-4x220 | 8 5/8" | 220 | 3.5 | 3-58 | 40 | 18 |
| CHS-4x250 | 10" | 250 | 3.5 | 3-65 | 40 | 18 |
| CHS-4x280 | 11" | 280 | 3.5 | 3-70 | 40 | 18 |
| CHS-4x300 | 11 5/8" | 300 | 3.5 | 3-80 | 40 | 18 |
| CHS-4x370 | 14 1/2" | 370 | 3.5 | 3-102 | 40 | 18 |
| CHS-5x120 | 4 3/4" | 120 | 4.5 | 3-24 | 50 | 22 |
| CHS-5x180 | 7" | 180 | 4.5 | 3-42 | 50 | 22 |
| CHS-5x190 | 7 1/2" | 190 | 4.5 | 3-46 | 50 | 22 |
| CHS-5x200 | 8" | 200 | 4.5 | 3-50 | 50 | 22 |
| CHS-5x250 | 10" | 250 | 4.5 | 3-65 | 50 | 22 |
| CHS-5x280 | 11" | 280 | 4.5 | 3-70 | 50 | 22 |
| CHS-5x300 | 78/5" | 300 | 4.5 | 3-82 | 50 | 22 |
| CHS-5x350 | 13 3/4" | 350 | 4.5 | 3-90 | 50 | 22 |
| CHS-5x380 | 15" | 380 | 4.7 | 3-102 | 50 | 22 |
| CHS-5x400 | 15 3/4" | 400 | 4.7 | 3-105 | 50 | 22 |
| CHS-5x430 | 17" | 430 | 4.7 | 3-110 | 50 | 22 |
| CHS-5x450 | 17 3/4" | 450 | 4.7 | 3-130 | 50 | 22 |
| CHS-5x500 | 19 11/16" | 500 | 4.7 | 3-150 | 50 | 22 |
| CHS-8x150 | 6" | 150 | 6.8 | 3-33 | 85 | 38 |
| CHS-8x180 | 7" | 180 | 6.8 | 3-42 | 85 | 38 |
| CHS-8x200 | 8" | 200 | 6.8 | 3-50 | 85 | 38 |
| CHS-8x250 | 10" | 250 | 6.8 | 4-63 | 85 | 38 |
| CHS-8x270 | 10 5/8" | 270 | 6.0 | 4-65 | 65 | 30 |
| CHS-8x300 | 11 5/8" | 300 | 7.5 | 4-82 | 85 | 38 |
| CHS-8x350 | 13 3/4" | 350 | 7.5 | 4-90 | 120 | 55 |
| CHS-8x370 | 14 1/4" | 370 | 7.5 | 4-98 | 85 | 38 |
| CHS-8x400 | 15 3/4" | 400 | 7.5 | 4-105 | 120 | 55 |
| CHS-8x450 | 17 3/4" | 450 | 7.5 | 4-118 | 120 | 55 |
| CHS-8x500 | 19 11/16" | 500 | 7.5 | 4-450 | 120 | 55 |
| CHS-8x750 | 29 9/16" | 750 | 7.5 | 4-220 | 120 | 55 |
| CHS-9x450 | 17 3/4" | 450 | 9.0 | 4-118 | 175 | 80 |
| CHS-9x530 | 21 1/16" | 530 | 9.0 | 8-155 | 175 | 80 |
| CHS-9x550 | 25 9/16" | 550 | 9.0 | 8-160 | 175 | 80 |
| CHS-9x650 | 27 1/2" | 650 | 9.0 | 8-190 | 175 | 80 |
| CHS-9x700 | 30" | 700 | 9.0 | 10-205 | 175 | 80 |
| CHS-9x760 | 36 1/4" | 760 | 9.0 | 10-225 | 175 | 80 |
| CHS-9x920 | 29 9/16" | 920 | 9.0 | 10-265 | 175 | 80 |
| CHS-9x1020 | 29 9/16" | 1020 | 9.0 | 10-295 | 175 | 80 |
| CHS-9x1150 | 29 9/16" | 1150 | 9.0 | 10-310 | 175 | 80 |
| CHS-9x1210 | 29 9/16" | 1210 | 9.0 | 10-340 | 175 | 80 |
| CHS-9x1350 | 29 9/16" | 1350 | 9.0 | 10-380 | 175 | 80 |
| CHS-10x450 | 17 3/4" | 450 | 12.7 | 10-125 | 250 | 114 |
| CHS-10x500 | 19 11/16" | 500 | 12.7 | 12-150 | 250 | 114 |
| CHS-12x300 | 11 5/8" | 300 | 12.7 | 12-105 | 250 | 114 |
| CHS-12x400 | 15 3/4" | 400 | 12.7 | 12-155 | 250 | 114 |
| CHS-12x540 | 21 1/4" | 540 | 12.7 | 14-190 | 250 | 114 |
| CHS-12x650 | 25 9/16" | 650 | 12.0 | 14-190 | 250 | 114 |
| CHS-12x750 | 29 9/16" | 750 | 12.0 | 10-220 | 250 | 114 |
| CHS-12x780 | 30 3/4" | 780 | 12.7 | 14-230 | 250 | 114 |
| CHS-13x540 | 21 1/4" | 540 | 13.0 | 14-155 | 250 | 114 |
