Screw Fuse Base

Applications

• Supporters for D01-D03, DII~DIII fuses of all application kinds (gG, aM, aR) in electric lines (type gG) are capable of working under the heat caused by rated current and prospective short-circuit impacting current up to 50KA.
• Rated insulate voltage up to 1140V; Working frequency 50HzAC; Rated current 200A. Compliant with GB13539.1, GB13539.3, GB13539.5 and IEC 269-1, IEC269-3.

Design Features

• This series of fuses bases are made up of fuse carrier and supporter. Insert the fuse into the carrier, which will be screwed into the supporter to form a complete screw fuse unit. There is a transparent glass window on the top of the fuse carrier, through which the status of the fuse can be easily observed. It can be screw installed or rail installed. (Figures 1~13).

Table 1

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)									Weight (g)
	Size	Models			Fig.	A1	A2	B1	B2	B3	H	ΦD	Φd

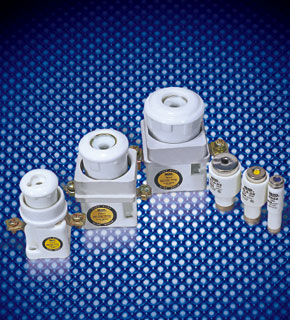

RO(FB)21	DII	RL6-25	500	25	Figure 1	27	45	30	45	68	72	38.5	5x6	159
RO(FB)22	DIII	RL6-63	500	63		38	53	33	54	85	80	48	5x6	265
FB24	-	RO(S)24	660	25		25	35	22	33	56	68	30	4x6	118

Table 2

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)								Weight (g)
	Size	Models			Fig.	A1	A2	B1	B2	H	ΦD	Φd

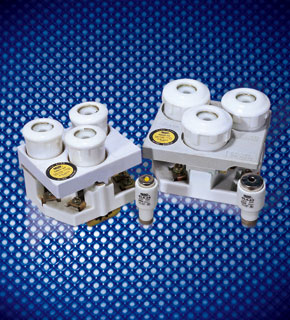

RO(FB)21-3J	DII	RO21	500	25	Figure 2	37	90	42	77	79	38	5x7	604
RO(FB)22-3J	DIII	RO22	500	63		37	110	48	95	80	48	6x10	860

Table 3

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)									Weight (g)
	Size	Models			Fig.	A1	A2	B1	B2	C	H	ΦD	Φd

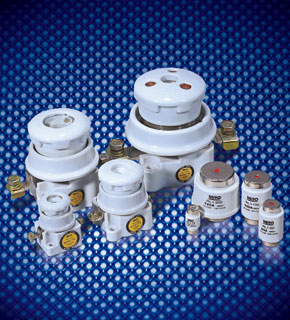

RL1-15	-	RL1-15	380	15	Figure 3	24	35	28	41	64	60	33	5	116
RL1-60	-	RL1-60	380	60		34	55	41	55	78	70	48	6	243
RL1-100	-	RL1-100	380	100		45	83	53	83	120	100	70	8	798
RL1-200	-	RL1-200	380	200		63	87	64	87	152	110	85	10	1460

Table 4

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)	Weight (g)
	Size	Models			Fig.

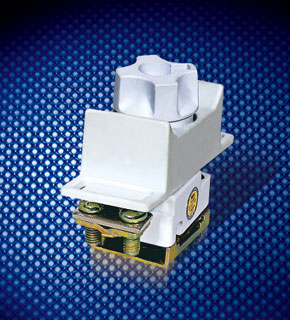

FB26A-63	-	RO26	500	63	Figure 4	63

Table 5

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)	Weight (g)
	Size	Models			Fig.

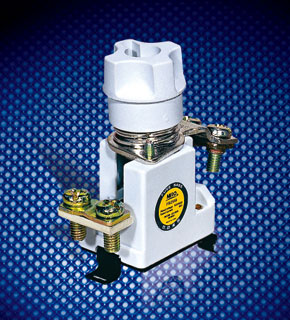

FB26B-63	-	RO26	500	63	Figure 5	80

Table 6

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)	Weight (g)
	Size	Models			Fig.

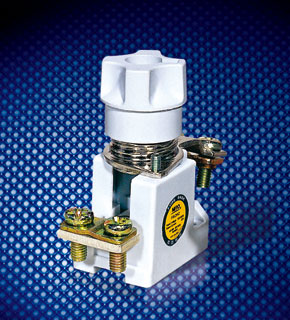

FB26C-63	-	RO26	500	63	Figure 6	74

Table 7

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)	Weight (g)
	Size	Models			Fig.

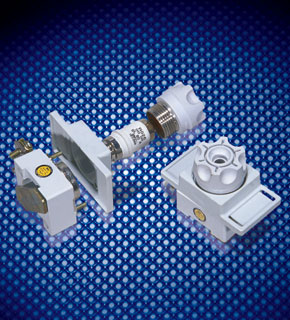

FB26A-100	-	RO26	500	100	Figure 7	194

Table 8

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)	Weight (g)
	Size	Models			Fig.

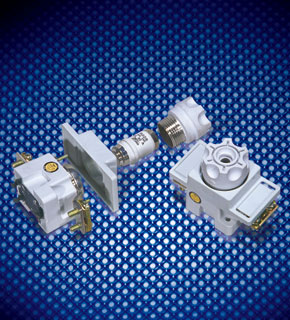

FB26B-100	-	RO26	500	100	Figure 8	228

Table 9

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)	Weight (g)
	Size	Models			Fig.

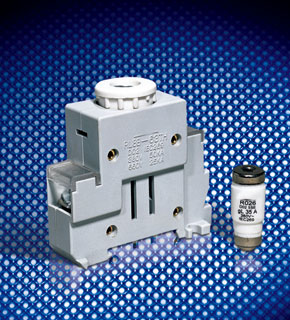

FB26C-100	-	RO26	500	100	Figure 9	226

Table 10

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)								Weight (g)
	Size	Models			Fig.	A1	A2	B1	B2	H	ΦD	Φd

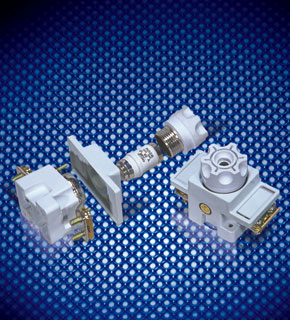

FB26-16	D01	RL8B	500	16	Figure 10	-	18	-	55	59	17	-	83
FB26-63	D02	RL8B	500	63		20	27	54	77	72	26	5	86

Table 11

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)	Weight (g)
	Size	Models			Fig.

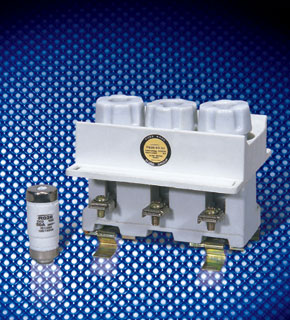

FB26-16-3J	D01	RL8B	500	16	Figure 11	286
FB26-63-3J	D02-	RL8B	500	63		295

Table 12

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)	Weight (g)
	Size	Models			Fig.

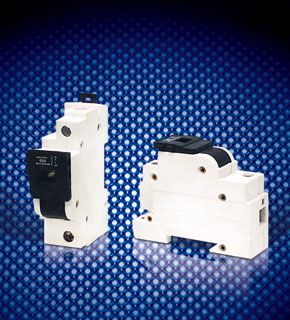

FB26D-63	D02	RO26	500	63	Figure 12	114

Table 13

Models	Fuse Link		Rated insulation voltage (V)	Conventionalfree air thermalcurrent(A)	Dimensions/ Sizes(mm)	Weight (g)
	Size	Models			Fig.

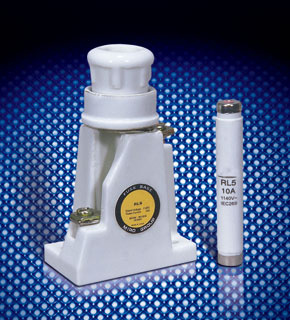

RL5	-	-	1140	25	Figure 13	260
