Y090, Y090E

Standard:

• EN 61058-1:2002, IEC60947-5-1, GB14048.5

Protection:

• The standard is IP40 and some types can reach IP67 with the seal cover

Certificate

Switch Ratings

Type	Ui: 660V
Terminal	Ith: 10A
Current/ Voltage	24V	48V	110V	220V	380V	500V
Dielectric Strengh	10A	5A	2.2A	1.1A
Operation Temp.			10A	6A	4A	2A

Specifications

Operating Temperature		-25°C ~ +55°C(no freezing)
Operating Humidity		45 ~ 85%Rh(no condensation)
Contact Material		-silver -silver alloy -gold-clad silver, clading thickness is 3μm
Contact Resistance		≤50mΩ
Insulation Resistance		≥100MΩ
Dielectric Strength		3000V, AC50Hz
Vibration Resistance		50Hz,Amplitude 1.0mm p-p
Shock Resistance		≥10g
Life	Mechanical	Momentary type: 1 000 000 times. Alternate type,selector type: 500 000times. Key-lock type, emergency type: 200 000 times
	Electrical	≥50,000 times
Terminal		Thread connection,diameter of welded wire: 2×1.5mm max Connecting link:6.3× 0.8mm
Operation		Operating Force: 800gf ~ 2200gf (according to the quantity of switch units) Operating Travel:About 5.5mm (Pushbuttons)

Lamp Ratings

Lamp Ratings	AC LED Lamp					Cquivalent Circuit	AC/DC: (Resistance step-down)
Illuminated Form	Lamp Type		Power Box Type
Rated Voltage	AC/DC 6V	AC/DC 12V	AC/DC 110V	AC/DC 220V	AC/DC 380V
	AC/DC 24V		AC 110V	AC 220V	AC 380V		AC: (Capacitor step-down) Frequency: 50/60Hz
Rated Current	≤20mA
Lamp Life	Approx. 40, 000h
Cover Color

Note:

1. Normal configuration of Lamp: Using LED without power box if below 60V, and if above 60V we suggest you choose the power box. Other special voltage of lamp can be customized.
2. The lamp contains current-limiting resistor inside.
3. Illuminated pushbutton is AC / DC universal two-way LED lamp, DC one-way, special voltage, and bi-color can be customized.

Order Code

Note:Φ25 diameterand Φ30 diameter of this series product should be installed with diameter changing circleand please add 'Φ25' or 'Φ30' behind the part number.

Indicator

Shape	Type	Number	Dimension	Remarks
Fast Installation Indicator	Indicator The illuminant: AC/DC LED lamp	Y090A-IF/△/▲/◎
Indicator		Y090A-I/△/▲

Illuminated & Non-illuminated optional

Shape	Type	Number	Dimension	Remarks
Fast Installation Flat Head	Momentary	Y090A-□PF/△/▲/◎		The black can't be used with lamp. IP67 should be installed seal cover.
	Latching	Y090A-□ZPF/△/▲/◎
Flat Head	Momentary	Y090A-□P/△/▲/◎
	Latching	Y090A-□ZP/△/▲/◎
High Head	Momentary	Y090A-□H/△/▲		The black can't be used with lamp.
	Latching	Y090A-□ZH/△/▲

Mushroom Type

Shape	Type	Number	Dimension	Remarks
Mushroom Pushbutton	Momentary	Y090A-□M/△/▲
	Latching	Y090A-□ZM/△/▲
Emergency Pushbutton	Push-lock Turn-reset	Y090A-□E/△/▲		The dimension of head: Φ30mm, Φ40mm

Selector Type

Shape	Type	Number	Dimension	Remarks

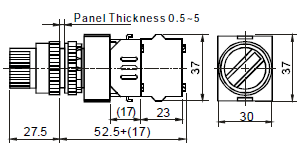

Selector Switch	90° 2position maintain	Y090A-□X/24/△/▲
	90° 2 position return	Y090A-□X/26/△/▲
	45° 3 position maintain	Y090A-□X/34/△/▲
	45° 3 position half return	Y090A-□X/35/△/▲
	45° 3 position self return	Y090A-□X/36/△/▲

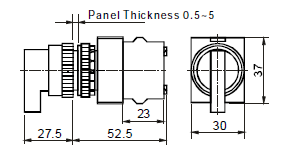

Lever Switch	90° 2position maintain	Y090A-□L/24/△
	90° 2 position return	Y090A-□L/26/△
	45° 3 position maintain	Y090A-□L/34/△
	45° 3 position half return	Y090A-□L/35/△
	45° 3 position self return	Y090A-□L/36/△

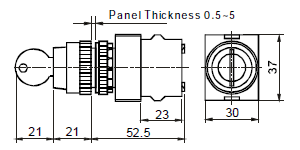

Key-lock Switch	90° 2position maintain	Y090A-□K/24		The key can be pull out in both positions.
	90° 2 position return	Y090A-□K/26
	45° 3 position maintain	Y090A-□K/34
	45° 3 position half return	Y090A-□K/35
	45° 3 position self return	Y090A-□K/36

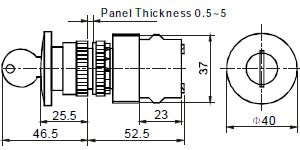

Mushroom Key-lock Switch	90° 2position maintain	Y090A-□MK/24/△
	90° 2 position return	Y090A-□MK/26/△
	45° 3 position maintain	Y090A-□MK/34/△
	45° 3 position half return	Y090A-□MK/35/△
	45° 3 position self return	Y090A-□MK/36/△

Note:

The keys are supplied.
The black can't be used with lamp.
