Phase Reversal Relay
APR-3
APR-3
Technical Data
| Classification | REV, Preventing Relay | |
| Model | APR-3 | |
| Dimensions | 50H×40W×58D | |
| Mounting & Socker | Surface(-N) | PF085A, PF083A(E) |
| Flush(-Y) | P3G-08, US-08 | |
| Functions | Protecting threepphase induction motor reverse relay 220V sourece with surece with surge absorber and high voltage protecting |
|
| Rated Voltage | AC(V): 220,240,380,415,440,50/60Hz | |
| Indicator Operating | -- | |
| O/P Contact | Model | APR-3 |
| Time Limit | 10A | |
| Life |
Mechanical | 5×106times |
| Electrical | 105times | |
| Setting Error | -- | |
| Reset Time | -- | |
| Consumed Power | 2VA | |
| Ambient Temperature | -10℃～+55℃ | |
| Ambent Huminity | 45～85%RH | |
| Weight | 90g | |
| Connection Diagrams & Timing Chart | 35A | |

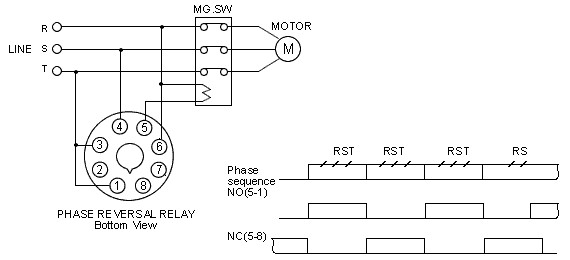

Connection Diagrams & Timing Chart
 |
