Mini Type Crimping Tools

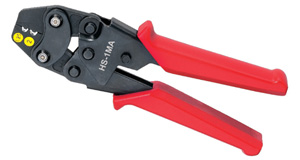

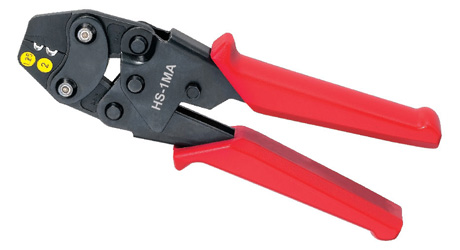

HS-1MA
Mini Crimping Tools
Features:
- The crimping tool HS-1MA is used for non-welding and standard electrical connection.
- The improved ratchet system need less strength.
- The design conforms to the principle of Human Factors Engineering to make sure the crimping effect to be much better.
- All the stress components are made of special steel,treated by special quenching and annealing.
- The tool is provided with the characteristics of high effectiveness and long life.
Technical Data
| Model | Range of Application | Capacity (mm2) |
AWG | Length (mm) |
Weight (kgs) |
| HS-1MA |  Non-Insulated Terminals |
1.25~2.5 | 18-14 | 170 | 0.25 |

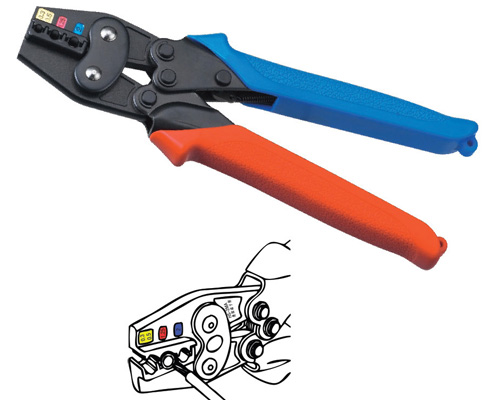

HS-2MA
Features:
- The crimping tool HS-2MA is used for non-welding and standard electrical connection.
- The improved ratchet system need less strength.
- The design conforms to the principle of Human Factors Engineering to make sure the crimping effect to be much better.
- All the stress components are made of special steel,treated by special quenching and annealing.
- The tool is provided with the characteristics of high effectiveness and long life.
Technical Data
| Model | Range of Application | Capacity (mm2) |
AWG | Length (mm) |
Weight (kgs) |
| HS-2MA |  Insulated Terminals |
0.25~2.5 | 16-13 | 170 | 0.25 |

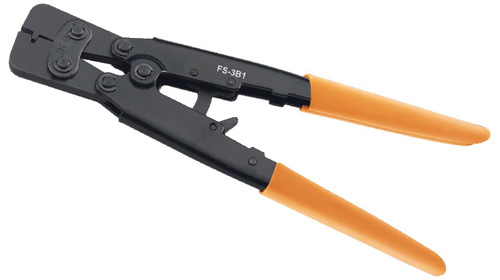

FS-3B1/2/3
Features:
- Japanese style Crimping tools
- For non-insulated tabs and receptacles.
Technical Data
| Model | Range of Application | Capacity (mm2) |
AWG | Length (mm) |
Weight (kgs) |
| FS-3B1 | Non-Insulated Terminals |
0.3~1.0 | 30-17 | 170 | 0.20 |

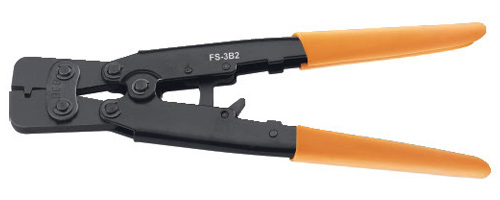

| FS-3B2 | 0.5~1.5 | 22-16 | 170 | 0.20 | |

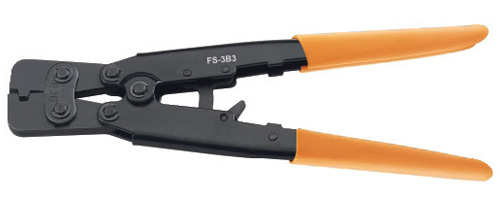

| FS-3B3 | 1.5~2.5 | 16-13 | 170 | 0.20 |

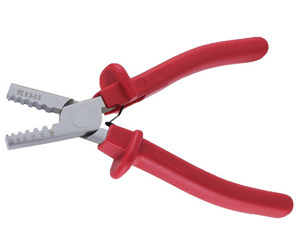

Germany Style Mini Crimping Tools
Germany Style Mini Crimping Tools
Features:
- Application: For cable end sleeves.
- Design: Crimping in the marked trapezoidal profile for particularly tight connections between the sleeves and the conductor.
- Material: Special tool steel,oil-hardened.
Technical Data
| Model | Range of Application | Capacity (mm2) |
Length (mm) |
Weight (kgs) |

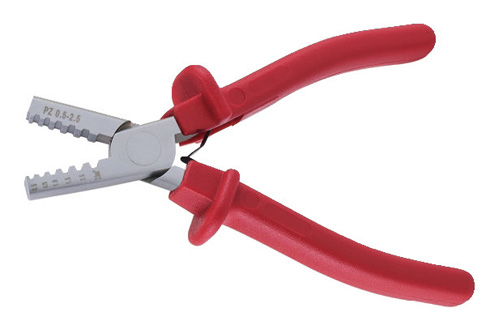

| PZ 0.25-2.5 |  Cord End Terminals (Insulated & Non-Insulated) |
0.25~2.5 | 145 | 0.112 |

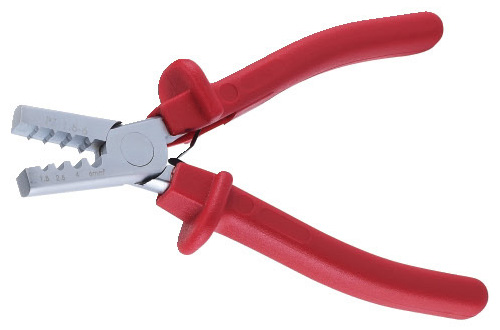

| PZ 1.5-6 | 1.5~6 | 140 | 0.112 | |

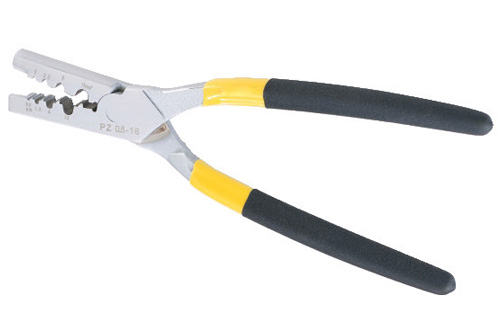

| PZ 0.5-16 | 0.5~16 | 220 | 0.25 | |

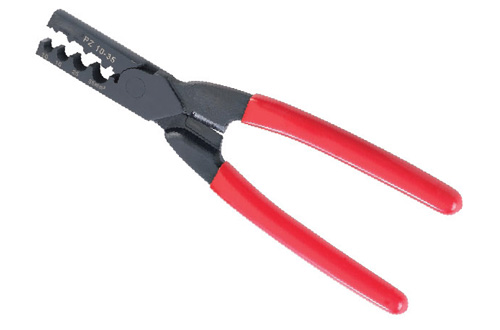

| PZ 10-35 | 10~35 | 220 | 0.25 |
Multi-Functional Crimping Tools
Multi-Functional Crimping Tools
Features:
- For cutting, stripping wires and crimping insulated and non-ilnsulated terminals and butt-connects
Technical Data
| Model | Length (mm) |
Weight (kgs) |

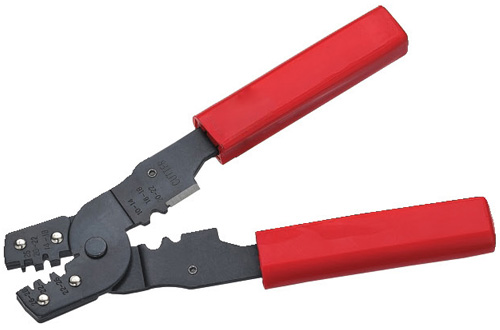

| HS-202B | 170 | 0.22 |

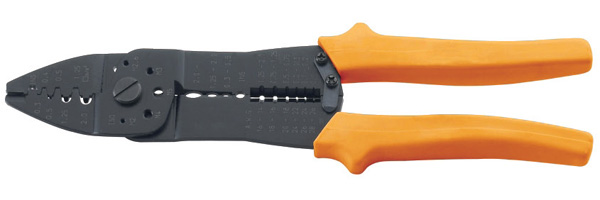

| HS-01 | 235 | 0.22 |

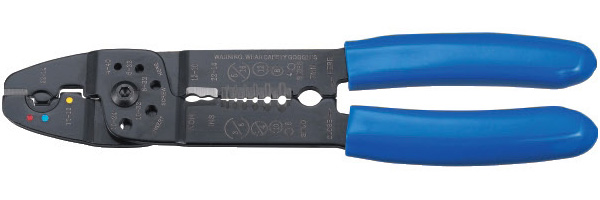

| FS-050 | 220 | 0.23 |

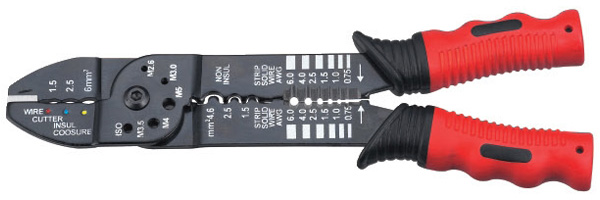

| FS-051 | 220 | 0.23 |

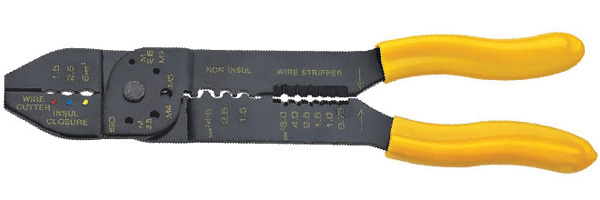

| HS-313 | 235 | 0.22 |

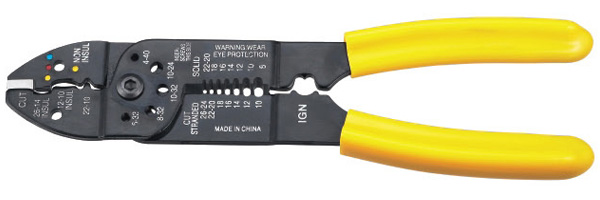

| FS-047 | 210 | 0.23 |
