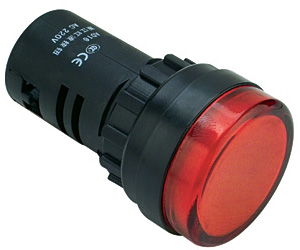

AD16

Product Overview

• AD16, AD22 series pilot lamp only use LED lamp as the light source. The advantage have: long life, gentle weight, small ,save energy. It is the advanced product of all kinds of the incandescence lamp and the neon lamp of the XD type.
• The cover of the lamp is made of PC material, and have good shock resistance. It can be used as indication pi lot light, accident signal and other signals in the circuits of such equipment as telecommunication.

Specifications

Electrical Live	≥30,000h
Permitted Voltage	±20%(≥110V)
Dielectric Strength	2.5kV(AC RMS),1min
Frequency	50~60Hz
Rated Operating Current	≥100cd/m2
Comparative Tracking Index	CT1≥100,flame retardant
Insulation Resistance	Ui≤60V, 5MΩ; 60V＜Ui≤660V, 50MΩ
Light Color

Diagramof Interior Connection

Type	AC/DC Type Pilot Lamp	AC Type Pilot Lamp	AC/DC Type bi-color Lamp	AC Type bi-color Lamp
Normal
Anti-Interference

Note:

1. AC/DC type pilot lamp is resistor step-down form; AC type pilot lamp is capacitor step-down form.
2. When voltage is 110V or above it,The temperature of outer shell of AC/DC type pilot lamp is higher than AC type pilot lamp.

Order Code

Attentions

1. The frequency of AC type pilot lamp is 50～60Hz. If work in other frequency ranges, it will be broken .
2. The common threshold value of anti-interference pilot lamp is below 40V; and if you need higher threshold value please tell us. We suggest that the threshold value shouldn't be too high. Please check the routing If the inter ference voltage is too high.
3. Connection error is not allowable to AC type dual-color light, otherwise pilot lamp will be broken.
4. Avoid using welding mode to connect lines as possible and you should using general plug (2.5×0.8mm) to connect and wear the protective sleeve. If you need to weld, please finish it in 3 seconds by the electric iron which is below 30W and don't exert external force on terminals .

16mm

Shape	Number	Color	Voltage	Dimension	Remarks
Indicator	AD16-A/△/▲		AC/DC6V AC/DC12V AC/DC24V AC/DC36V AC/DC48V		Pin Terminal
Indicator	AD16-B/△/▲		AC/DC110V AC/DC220V AC/DC380V AC110V AC220V AC380V		Pin Terminal
Indicator	AD16-E/△/▲		AC/DC6V AC/DC12V AC/DC24V AC/DC36V AC/DC48V AC/DC110V AC/DC220V AC/DC380V AC110V AC220V AC380V		Screw Terminal Electric Shock Protection
