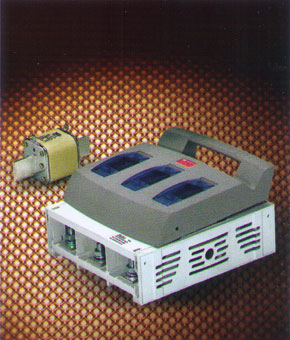

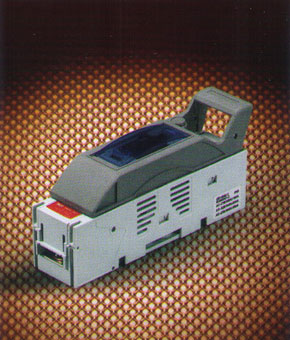

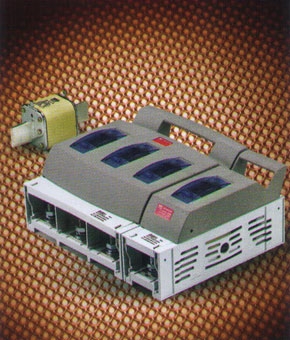

H1 Fuse Switch Disconnector
![Home Home](../images/home.jpg)
Applications
- H1 series of fuse disconnecting switch, are mainly used in circus with high short-circuit current and motor circuit as power switch, disconnecting switch or emergency switch.
- Rated insulation voltage up to AC 50Hz 800V; Rated working voltage up to 690V; Rated working current up to 250A; Rated short-time withstand current (valid): 20Ith/1S. The switch complies with GB14048.3 and IEC/EN60947-3.
Design Features
- The switch with half sealed structures is made up of two parts: the seat and cover (fuse holder). Through the window in the cover, it can observe the rated data of the fuse links and indicator status.
- The switch should be matched with the appropriate size of fuse links accordingly. H1-160/1 is single-pole and H1-160 is three-pole, both can be matched with size NH000 and NH00 fuse links, H1-250/1, H1-400/1, H1-630/1 are single-pole and H1-250, H1-400, H1-630 are three-pole, They are matched with NH1, NH2, NH3 fuse links separately. The three-pole switch can be combined with the single-pole version with the same size into four-pole switch.
- The switch has the features of small size, reliable operation, convenient installation and removal.
- All of these products, except for conductive parts all are the finger-touch protection: IP20.
- Compliance with GB14048.3 and IEC/EN60947-3.

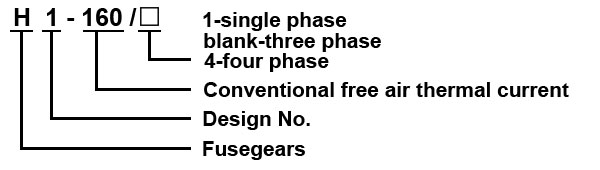

Model Meaning:
Table 4 Basic data of switch
Models |
Rated insulation voltage (V) |
Rated working voltage (V) |
Conventional free air thermal current (A) |
Fuse link |
Weight (g) |
Dimension (mm) |
H1-160/1 |
800 |
400, 500, 690 |
160 |
NH00, NH000 |
290 |
Figure 2 |
H1-160 |
800 |
400, 500, 690 |
160 |
NH00, NH000 |
700 |
Figure 3 |
H1-160/4 |
800 |
400, 500, 690 |
160 |
NH00, NH000 |
990 |
Figure 3 |
H1-250/1 |
800 |
400, 500, 690 |
250 |
NH1 |
735 |
Figure 4 |
H1-250 |
800 |
400, 500, 690 |
250 |
NH1 |
1510 |
Figure 5 |
H1-250/4 |
800 |
400, 500, 690 |
250 |
NH1 |
2245 |
Figure 5 |
H1-400/1 |
800 |
400, 500, 690 |
400 |
NH2 |
1302 |
Figure 6 |
H1-400 |
800 |
400, 500, 690 |
400 |
NH2 |
3272 |
Figure 7 |
H1-400/4 |
800 |
400, 500, 690 |
400 |
NH2 |
4574 |
Figure 7 |
H1-630/1 |
800 |
400, 500, 690 |
630 |
NH3 |
1492 |
Figure 6 |
H1-630 |
800 |
400, 500, 690 |
630 |
NH3 |
3855 |
Figure 7 |
H1-630/4 |
800 |
400, 500, 690 |
630 |
NH3 |
5347 |
Figure 7 |
Figure 3 (H1-160, H1-160/4)
Figure 5 (H1-250, H1-250/4)
Figure 6 (H1-400/1, H1-630/1)
Figure 7 (H1-400, H1-400/4, H1-630, H1-630/4)
Table 5 The working current of the switch at different voltages and different applications
Models |
Rated working voltage (V) |
Rated working current (A) |
Application |
Fuse link |
The rated breaking capacity of the fuse links (KA) |
H1-160/1 |
690 |
100 |
AC21B |
NH00, NH000 |
50 |
500 |
125 |
AC22B |
NH00 |
100 |
230/400 |
160 |
AC23B |
NH00 |
100 |
H1-160
H1-160/4 |
690 |
100 |
AC21B |
NH00, NH000 |
50 |
500 |
125 |
AC22B |
NH00 |
100 |
230/400 |
160 |
AC23B |
NH00 |
100 |
H1-250/1 |
690 |
160 |
AC21B |
NH1 |
50 |
500 |
200 |
AC22B |
NH1 |
100 |
230/400 |
250 |
AC23B |
NH1 |
100 |
H1-250
H1-250/4 |
690 |
160 |
AC21B |
NH1 |
50 |
500 |
200 |
AC22B |
NH1 |
100 |
230/400 |
250 |
AC23B |
NH1 |
100 |
H1-400/1 |
690 |
250 |
AC21B |
NH2 |
50 |
500 |
315 |
AC22B |
NH2 |
100 |
230/400 |
400 |
AC23B |
NH2 |
100 |
H1-400
H1-400/4 |
690 |
250 |
AC21B |
NH2 |
50 |
500 |
315 |
AC22B |
NH2 |
100 |
230/400 |
400 |
AC23B |
NH2 |
100 |
H1-630/1 |
690 |
400 |
AC21B |
NH3 |
50 |
500 |
500 |
AC22B |
NH3 |
100 |
230/400 |
630 |
AC23B |
NH3 |
100 |
H1-630
H1-630/4 |
690 |
400 |
AC21B |
NH3 |
50 |
500 |
500 |
AC22B |
NH3 |
100 |
230/400 |
630 |
AC23B |
NH3 |
100 |
Table 6 Rated open and breaking capacity of the switch
Rated working voltage (V) |
Rated working current (A) |
Application |
The rated breaking capacity of the fuse links (KA) |
Connecting |
Breaking |
I/Ie |
U/Ue |
COSΦ |
Ic/Ie |
Ur/Ue |
COSΦ |
690 |
All current |
AC21B |
1.5 |
1.05 |
0.95 |
1.5 |
1.05 |
0.95 |
500 |
All current |
AC22B |
3 |
1.05 |
0.65 |
3 |
1.05 |
0.65 |
400 |
≤100 |
AC23B |
10 |
1.05 |
0.45 |
8 |
1.05 |
0.45 |
>100 |
AC23B |
10 |
1.05 |
0.35 |
8 |
1.05 |
0.35 |
Note:
- I for connecting current
- U post connecting voltage
- Ie rated working current
- Ue rated working voltage
- Ic breaking current
- Ur recovery current
