Waterproof, Dustproof and Moistureproof Fluorescent Lamp
T8G Series
Features:

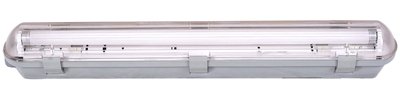

Single Lamps 1x18W, 1x36W, 1x58W

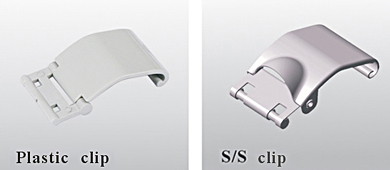

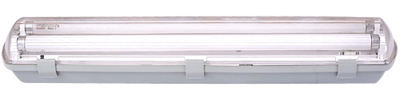

Double Lamps 2x18W, 2x36W, 2x58W- Body: Injection moulded，opaque UV stabilized polycarbonate body, waterproof gasket in natural silicon gel. Secure the geartray by "U" shape fixed supports.with plastic gear tray holder connected to the body for easy installation and maintenance of the electrical components. Closing clips in polycarbonate or stainless steel.
- Reflector: White-coated flat metal plate, complex parabolic profile ensures optimization of lighting performance.
- Diffuser: Injection moulded,transparent UV stabilized polycarbonate diffuser,highly impact resistant, It features averaged 5mm width anti-dazzling prismatic line and stylish,fine grained frosted front planes, simple and good appearance. The diffuser can be suspended by the transparent plastic holder to the gear tray for easy installation and maintenance of the lamps.
Characteristics
| Type | Lamps | Protection | Clip QTY. | Dimensions(mm) | QTY./CTN (PCS) |
Packing Szie (mm) |
|||
| L | W | H | LF | ||||||
| V3118G | 1x18W T8 G13 | IP65/ IK08 | 6 | 660 | 95 | 96 | 350 | 12 | 685x408x315 |
| V3136G | 1x36W T8 G13 | IP65/ IK08 | 10 | 1270 | 95 | 96 | 790 | 6 | 1295x310x215 |
| V3158G | 1x58W T8 G13 | IP65/ IK08 | 12 | 1570 | 95 | 96 | 1000 | 6 | 1595x310x215 |
| V3218G | 2x18W T8 G13 | IP65/ IK08 | 6 | 660 | 145 | 96 | 350 | 9 | 685x460x315 |
| V3236G | 2x36W T8 G13 | IP65/ IK08 | 10 | 1270 | 145 | 96 | 790 | 4 | 1295x310x215 |
| V3258G | 2x58W T8 G13 | IP65/ IK08 | 12 | 1570 | 145 | 96 | 1000 | 4 | 1595x305x215 |
Dimension
