Waterproof, Dustproof and Moistureproof Fluorescent Lamp
T8D Series
Features:

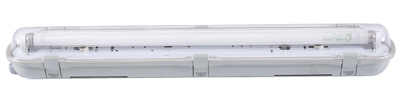

Single Lamps 1x18W, 1x36W, 1x58W

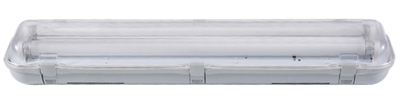

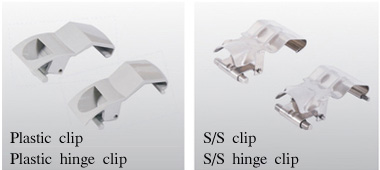

Double Lamps 2x18W, 2x36W, 2x58W- Body: Injection moulded,opaque UV stabilized polycarbonate body, waterproof gasket in natural silicon gel.Secure the gear tray by "T" shape rotated supports,with plastic gear tray holder connected to the body for easy installation and maintenance.Closing clips in polycarbonate or stainless steel,with two clips at one side of the diffuser suspending the cover once opened.The design of the end of the clips is for easy opening the diffuser by fingers only, no need other tool.
- Reflector: White-coated flat metal plate,with two ends 5mm down for the appropriate position of the lamp once installed.
- Diffuser: Injection moulded,transparent UV stabilized polycarbonate diffuser, highly impact resistant,It features averaged 3mm width anti-dazzling prismatic line and stylish,fine grained frosted front "and" shape planes.
Characteristics
| Type | Lamps | Protection | Clip QTY. | Dimensions(mm) | QTY./CTN (PCS) |
Packing Szie (mm) |
|||
| L | W | H | LF | ||||||
| V3118D | 1x18W T8 G13 | IP65/ IK08 | 6 | 664 | 90 | 90 | 350 | 12 | 685x395x300 |
| V3136D | 1x36W T8 G13 | IP65/ IK08 | 8 | 1274 | 90 | 90 | 900 | 9 | 1295x300x300 |
| V3158D | 1x58W T8 G13 | IP65/ IK08 | 10 | 1574 | 90 | 90 | 1200 | 9 | 1595x300X300 |
| V3218D | 2x18W T8 G13 | IP65/ IK08 | 6 | 664 | 140 | 90 | 350 | 9 | 685x450x300 |
| V3236D | 2x36W T8 G13 | IP65/ IK08 | 8 | 1274 | 140 | 90 | 900 | 6 | 1295x450x205 |
| V3258D | 2x58W T8 G13 | IP65/ IK08 | 10 | 1574 | 140 | 90 | 1200 | 6 | 1295x450x205 |
Dimension
