CR Series

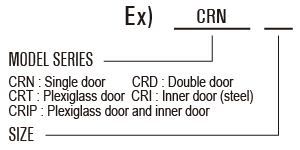

Classification models

Note:
• Optional of Canopy
• Double door min. size for 600x800x200
• Plexiglass door min. size for 400x300x200
• Inner door min. size for 400x300x200
• Plexiglass door and inner dorr min. size for 700x500x250

Feature

• Made of high quality steel sheet.
• Surface finished with Polyester powder coating.

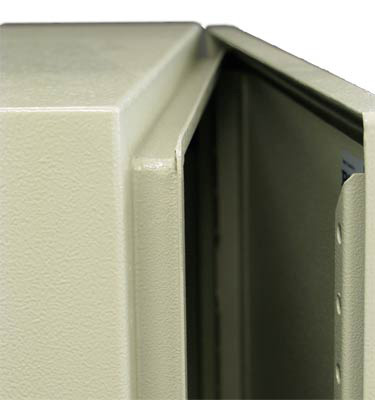

• Double folded gutter at door frame to increase rigidity and prevent water from entering while door is opened.

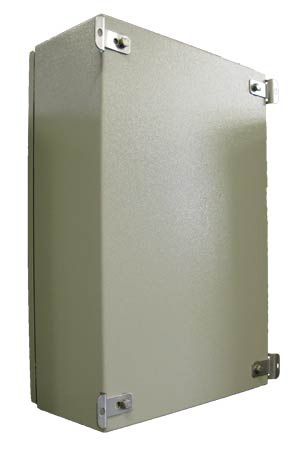

• 4 fixing holes for direct wall mounting or using alternative mounting brackets.

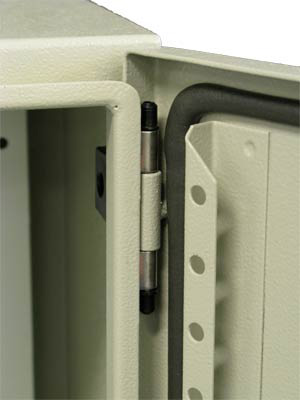

• Concealed hinges provide 130 deg. door opening.
• Inner door and plexiglass door.
• 4 welded studs for fixing mounting plate.

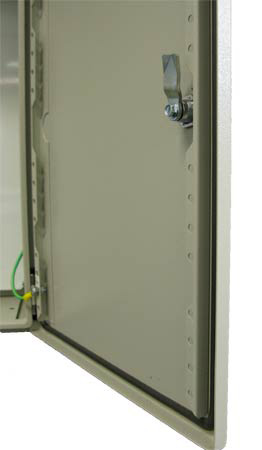

• Earthing facilities on door, body and mounting plates.
• Polyurethane one piece gasket on door panel provides continuous seal.

References and details of enclosures

External size(mm)			No.of lock	Gland Opening	Mounting Plate
H	W	D			I	G
200	200	150	1	O	165	150
250	200	150	1	O	215	150
250	250	150	1	A	215	200
300	200	150	1	O	265	150
300	250	150	1	A	265	200
300	300	150	1	B	265	250
300	400	150	1	B	265	350
400	300	150	1	B	365	250
400	400	150	1	B	365	350
500	300	150	1	B	465	250
500	400	150	1	C	465	350
500	500	150	1	D	465	450
600	400	150	2	C	565	350
600	500	150	2	D	565	450
300	250	200	1	A	265	200
300	300	200	1	B	265	250
300	400	200	1	B	265	350
400	300	200	1	B	365	250
400	400	200	1	B	365	350
400	600	200	1	D	365	550
500	300	200	1	B	465	250
500	400	200	1	B	465	350
500	500	200	1	D	465	450
600	400	200	2	C	565	350
600	500	200	2	D	565	450
600	600	200	2	D	565	550
700	500	200	2	D	665	450
700	600	200	2	D	665	550
800	600	200	2	D	765	550
800	800	200	2	E	765	750
1000	600	200	2	D	965	550
1000	800	200	2	E	965	750
1200	600	200	2	D	1165	550
1200	800	200	2	E	1165	750
400	400	250	1	C	365	350
400	600	250	1	D	365	550
500	400	250	1	C	465	350
500	500	250	1	D	465	450
600	400	250	2	C	565	350
600	500	250	2	D	565	450
600	600	250	2	D	565	550
700	500	250	2	D	665	450
800	600	250	2	D	765	550
800	800	250	2	E	765	750
1000	600	250	2	D	965	550
1000	800	250	2	E	965	750
1200	600	250	2	D	1165	550
1200	800	250	2	E	1165	750
400	600	300	1	D	365	550
500	400	300	1	C	465	350
600	400	300	2	C	565	350
600	500	300	2	D	565	450
600	600	300	2	D	565	550
700	500	300	2	D	665	450
800	600	300	2	D	765	550
800	800	300	2	E	765	750
1000	600	300	2	D	965	550
1200	600	300	2	D	1165	550
1000	800	300	2	E	965	750
1200	800	300	2	E	1165	750
1400	800	300	3	E	1365	750
800	600	400	2	D	765	550
800	800	400	2	E	765	750
1000	600	400	2	D	965	550
1000	800	400	2	E	965	750
1200	600	400	2	D	1165	550
1200	800	400	2	E	1165	750
1400	800	400	2	E	1365	750

Note: Other size can customization.

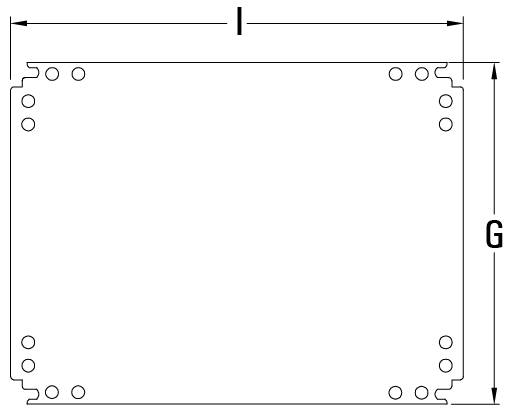

Mounting Plate

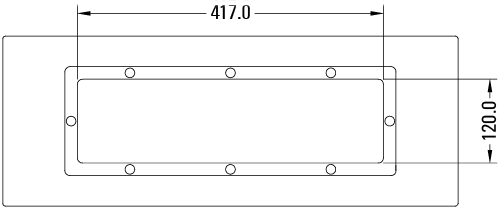

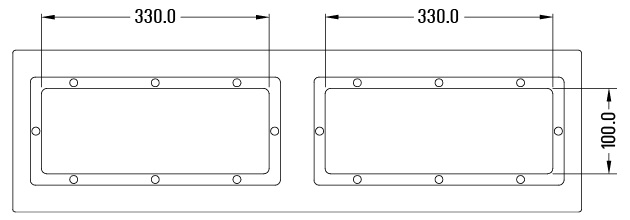

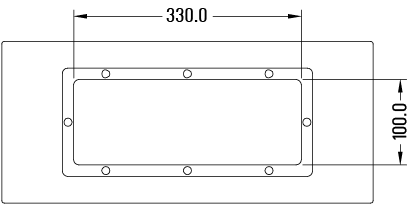

Gland Opening
