Terminal Block

TB Series Fixed Terminal Blocks

Home

Teachnical Data

TB-1503 TB-1504 TB-1505
Rating: 600V 15A Rating: 600V 15A Rating: 600V 15A
Number of poles: 3 Number of poles: 4 Number of poles: 5+
Dimensions(mm):
L: 46 L1: 36.5
A: 7.5 B: 9 C: M3 D: 22 E: 17		 Dimensions(mm):
L: 55 L1: 45.55
A: 7.5 B: 9 C: M3 D: 22 E: 17		 Dimensions(mm):
L: 64.2 L1: 52
A: 7.5 B: 9 C: M3 D: 22 E: 17
TB-1506 TB-1508 TB-1510
Rating: 600V 15A Rating: 600V 15A Rating: 600V 15A
Number of poles: 6 Number of poles: 8 Number of poles: 10
Dimensions(mm):
L: 73 L1: 63.5
A: 7.5 B: 9 C: M3 D: 22 E: 17		 Dimensions(mm):
L: 91.2L1: 80
A: 7.5 B: 9 C: M3 D: 22 E: 17		 Dimensions(mm):
L: 109 L1: 98
A: 7.5 B: 9 C: M3 D: 22 E: 17
TB-1512 TB-2503 TB-2504
Rating: 600V 15A Rating: 600V 25A Rating: 600V 25A
Number of poles: 12 Number of poles: 3 Number of poles: 4
Dimensions(mm):
L: 127 L1: 118
A: 7.5 B: 9 C: M3 D: 22 E: 17		 Dimensions(mm):
L: 50 L1: 40
A: 10.5 B: 12 C: M4 D: 30 E: 207		 Dimensions(mm):
L: 62.5 L1: 57
A: 10.5 B: 12 C: M4 D: 30 E: 20
TB-2505 TB-2508 TB-2510
Rating: 600V 25A Rating: 600V 25A Rating: 600V 25A
Number of poles: 5 Number of poles: 12 Number of poles: 10
Dimensions(mm):
L: 78.7 L1: 68
A: 10.5 B: 12 C: M4 D: 30 E: 20		 Dimensions(mm):
L: 115 L1: 105
A: 10.5 B: 12 C: M4 D: 30 E: 20		 Dimensions(mm):
L: 139L1: 128
A: 10.5 B: 12 C: M4 D: 30 E: 20
TB-2506 TB-2512 TB-4503
Rating: 600V 25A Rating: 600V 25A Rating: 600V 45A
Number of poles: 6 Number of poles: 12 Number of poles: 3
Dimensions(mm):
L: 91 L1: 81.5
A: 10.5 B: 12 C: M4 D: 30 E: 20		 Dimensions(mm):
L: 163 L1: 153
A: 10.5 B: 12 C: M4 D: 30 E: 20		 Dimensions(mm):
L: 70 L1: 60.5
A: 15 B: 17 C: M5 D: 38 E: 23.5
TB-4504 TB-4506 TB-603
Rating: 600V 45A Rating: : 600V 45A Rating: 600V 60A
Number of poles: 4 Number of poles: 6 Number of poles: 3
Dimensions(mm):
L: 86 L1: 75.5
A: 15 B: 17C: M5 D: 38 E: 23.5		 Dimensions(mm):
L: 120.5 L1: 110
A: 15 B: 17 C: M5 D: 38 E: 23.5		 Dimensions(mm):
L: 70.5L1: 65.5
A: 15.5 B: 18 C: M6 D: 38 E: 31
TB-604 TB-606 TB-1003
Rating: 600V 60A Rating: 600V 60A Rating: 600V 100A
Number of poles: 4 Number of poles: 6 Number of poles: 3
Dimensions(mm):
L: 93.5 L1: 82.5
A: 15.5 B: 18 C: M6 D: 38 E: 31		 Dimensions(mm):
L: 129 L1: 118
A: 15.5 B: 18 C: M6 D: 38 E: 31		 Dimensions(mm):
L: 86.5 L1: 75.5
A: 22 B: 20 C: M6 D: 43.5 E: 35
TB-1004 TB-1006
Rating: 600V 100A Rating: 600V 100A
Number of poles: 4 Number of poles: 6
Dimensions(mm):
L: 108 L1: 96
A: 22 B: 20 C: M6 D: 43.5 E: 35		 Dimensions(mm):
L: 153 L1: 140
A: 22 B: 20 C: M6 D: 43.5 E: 35

Dimensioned

Top

TC Fixed Terminal Blocks

Teachnical Data

TC-10A/3P TC-10A/3P TC-10A/6P
Wire Section: 0.5-1.5mm2 Wire Section: 0.5-1.5mm2 Wire Section: 0.5-1.5mm2
Rated Current / Voltage: 10A/660V rated current / voltage 10A/660V Rated Current / Voltage: 10A/660V
TC-10A/10P TC-20A/3P TC-20A/4P
Wire Section: 0.5-1.5mm2 Wire Section: 0.5-2.5mm2 Wire Section: 0.5-2.5mm2
Rated Current / Voltage: 10A/660V Rated Current / Voltage: 20A/600V Rated Current / Voltage: 20A/600V
TC-20A/6P TC-20A/8P TC-30A/3P
Wire Section: 0.5-2.5mm2 Wire Section: 0.5-2.5mm2 Wire Section: 0.5-4mm2
Rated Current / Voltage: 20A/600V Rated Current / Voltage: 20A/600V Rated Current / Voltage: 30A/600V
TC-30A/4P TC-30A/6P TC-30A/10P
Wire Section: 0.5-4mm2 Wire Section: 0.5-4mm2 Wire Section: 0.5-4mm2
Rated Current / Voltage: 30A/600V Rated Current / Voltage: 30A/600V Rated Current / Voltage: 30A/600V
TC-10A/12P TC-20A/12P TC-30A/12P
Wire Section: 0.5-1.5mm2 Wire Section: 0.5-2.5mm2 Wire Section: 0.5-4mm2
Rated Current / Voltage: 10A/600V Rated Current / Voltage: 20A/600V rated current / voltage 30A/600V

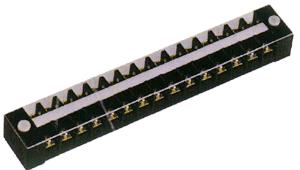

TC-20A/15P TC-20A/20P
Wire Section: 0.5-2.5mm2 Wire Section: 0.5-2.5mm2
Rated Current / Voltage: 20A/600V Rated Current / Voltage: 20A/600V

Top

TC Fixed High Current Terminal Blocks

Teachnical Data

TC-603 60A TC-604 60A TC-1003 100A
TC-1004 100A TC-1503 150A TC-1504 150A
TC-2003 200A TC-2004 200A TC-3003 300A
TC-3004 300A TC-4003 400A TC-4004 400A

TC-6003 600A TC-6004 600A



Top

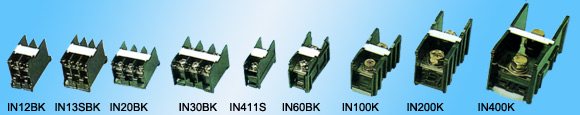

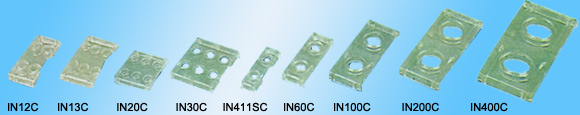

IN Fixed Terminal Blocks

  • Insulation voltage: 600V
  • Insulation current capacity: 20A-400A
  • Type "IN" can be fit on and removed from 35mm wide din rails quickly and easily.
  • Space slice no need

Teachnical Data

Images
Type IN12BK-C IN13BK-C
Rated insulation voltage 600V 600V
Rated insulation current 20A 20A
Support voltage 2500V,IMIN 2500V,IMIN
Insulation resistance 100MΩMIN 100MΩMIN
Applicable wire 2mm2Max 2mm2Max
Number of poles 2 poles 3 Ploes
Dimensioned
Images
Type IN20BK-C IN30BK-C
Rated insulation voltage 600V 600V
Rated insulation current 30A 50A
Support voltage 2500V,IMIN 2500V,IMIN
Insulation resistance 100MΩMIN 100MΩMIN
Applicable wire 3.5mm2Max 8mm2Max
Number of poles 3Ploes 3Ploes
Dimensioned
Images
Type IN60BK-C IN411SB-C IN200K-C IN100K-C
Rated insulation voltage 600V 600V 600V 600V
Rated insulation current 90A 60A 240A 130A
Support voltage 2500V,IMIN 2500V,IMIN 2500V,IMIN 2500V,IMIN
Insulation resistance 100MΩMIN 100MΩMIN 100MΩMIN 100MΩMIN
Applicable wire 100mm2Max 14mm2Max 100mm2Max 38mm2Max
Number of poles 1 poles 1 poles 1 poles 1 poles
Dimensioned
IN60BK-C IN200K-C
IN411SB-C IN100K-C
Images
Type IN400K-C
Rated insulation voltage 600V
Rated insulation current 370A
Support voltage 2500V,IMIN
Insulation resistance 100MΩMIN
Applicable wire 200mm2Max
Number of poles 1Ploes
Dimensioned

Top
