SX Series

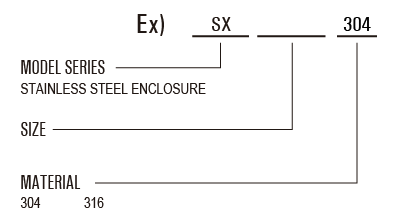

Classification models

Note:
• Optional of Canopy

Feature

• Made of stainless steel SS 304 / SS 316
• Hairline finished
• IP66 protection rating - more info on IP ratings

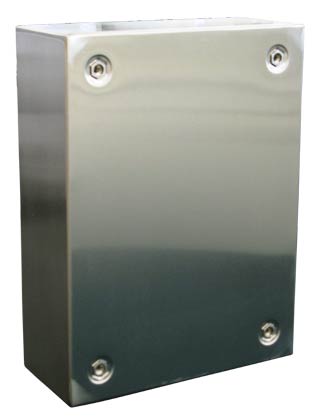

• Fixing studs for external mountings with no drilling required (maintains IP rating)

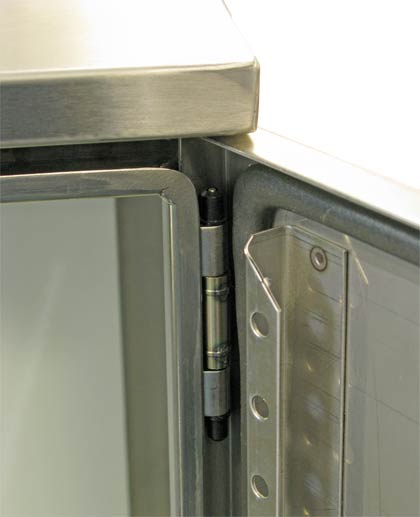

• Right or left hand reversible door for easy access on site 120° door opening

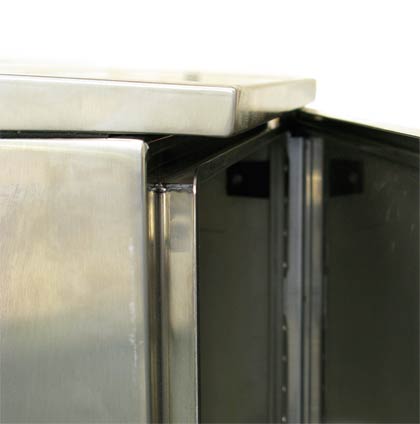

• Flat face sealing for a consistent seal and long life

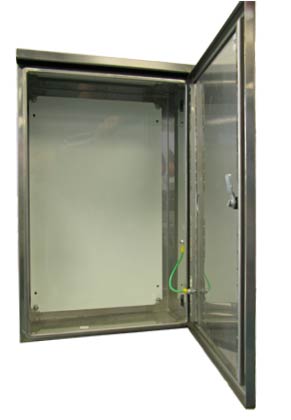

• Earthing facilities on door, body and mounting plates

References and details of enclosures

Height (H)	Width (W)	Depth (D)	No.of locks
250	200	150	1
300	200	150	1
300	250	150	1
300	300	150	1
400	300	150	1
400	300	200	1
400	400	200	1
500	400	200	1
600	400	200	2
600	600	250	2
700	500	250	2
800	600	250	2
800	800	300	2
1000	800	300	2
1200	800	300	2

Note: Other size can customization.
