A solid state relay (SSR) is an electronic switching device in which a small control signal controls a larger load current or voltage. It comprises a voltage or current sensor which responds to an appropriate input (control signal), a solid-state electronic switching device of some kind which switches power to the load circuitry either on or off, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It is functionally equivalent to an electromechanical relay, but has no moving parts.

Features

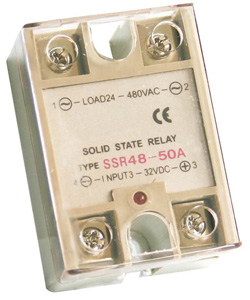

Solid State Relay
Solid State Relay
Solid State Relay
Solid State Relay
  • Current:0.5A-400A
  • voltage:12V-680V
  • Small General outline Vacuum Weld Techinics
  • Make R/C(MOV)inside could absorb out ITSM
  • LED mean turn on or OFF
  • Clarity protect Panel
  • IEC standard
  • Input & output type could chose DC/AC, AC/AC, DC/DC, AC/DC

Typical Applications

  • AC DC switch & Temp. control
  • Automate Control
  • Numerical Control Machinery

Order Code

    Order Code
    1. Solid State Relay
    2. D=DC/AC; A=AC/DC; V=Voltage Controls (AC/AC DC/DC) HD=High power DC/AC;
    3P=3-phase DC/AC
    3. Load Voltage= Code×10 (48×10=480V)
    4. Id Value: DC out current
