Circuit Breaker

Residual Current Circuit Breaker with Overcurrent Protection

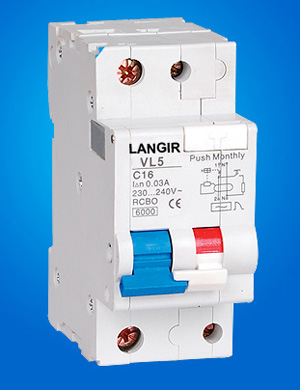

VL5-40

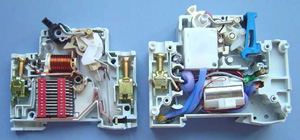

Construction Features

Application:

Protection against the effects of earth leakage overload and short circuit currents.
2P switching of ph&N,Phase only protected against overloads and short circuits.
In commercial,industrial and domestic electrical distribution systems.
Note:must mot be used as the sole means of providing protection against direct contact.
The RCBO incorporates a residual current operated electromagnetic release which operates without any auxiliary source of suppl to open a circuit automatically in the case of an earth leakage fault between phase and earth greater than or equal to In.
The RCBO combined MCB&RCCB provides:Protection against indirect contact
Complementary protection against direct contact
Protection for the installation against in sulation faults
Standard: GB16917.1, IEC61008

Advantage

Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
The fast and flexible production form aim at the customer require;
The deliveries exactly in accordance with customer orders
The fast transportation.
Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.

Construction Features:

Measuring component and buckling component of products is located between enter line end and entrance line end ;
Movement characteristic of products can not be changed with outside mechanical tool ;
The operating organization has the free function to take off and buckle;
Operate part can not be taken down from the shell outer of products , the shell can not influence the operating organization to work , the accessory group which replace the feelers pressure, should guarantee the feelers pressure does not change while running.

Normal operation and mounting requirement

Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
Altitude above sea level less than 2000 m.
Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
Installation class II or III.
Pollution class 2.
Installation method DIN Rail mounting type.
The external magnetism shall not be more than 5 times of terrestrial one.
Product shall be installed at the place where there shall be no severe impact and vibration.
Product shall be vertically mounted onto standard Din rail 35mm.

Type	VL5-40
Number of poles	1P+N
Rated Current(In)	1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40A
Rated operating current( I△n)	30, 100, 300, 500mA
Rated Voltage(Un)	230(240)VAC
Residual operating current scope	0.5I△n~I△n
Residual current off-time	≤0.3s
Type	A, AC
Ultimate short-circuit breaking capacity (Inc)	6000A
Endurance	≥4000
Terminal protection	IP20
