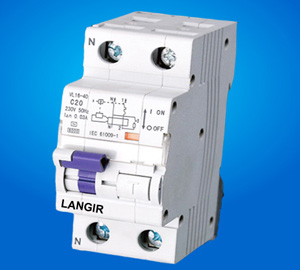

VL16-40

Application:

• Standard: GB16917.1, IEC61008

Advantage

• Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
• Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
• The fast and flexible production form aim at the customer require;
• The deliveries exactly in accordance with customer orders
• The fast transportation.
• Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.

Construction Features:

• Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation
• Provides complementary protection against direct contact by human body
• Effectively protects electric equipment against insulating failure
• Provides comprehensive protection to household and commercial distribution systems

Normal operation and mounting requirement

• Electro-mechanical endurance: 4000 cycles
• Connection terminal: pillar terminal with clamp
Connection capacity:
• Flexible conductor 10mm²
• Rigid conductor 16mm²

Technical Data

Type	VL16-40 Electro-magnetic type
Number of poles	1P+N
Tripping Curve	B, C
Rated Current(In)	6, 10, 16, 20, 25, 32, 40A
Rated Voltage(Un)	230VAC
Rated frequency	50/60Hz
Rated residual operating current(mA)	30
Residual current off-time	≤0.1s
Type	AC
Ultimate short-circuit breaking capacity (Inc)	6000A

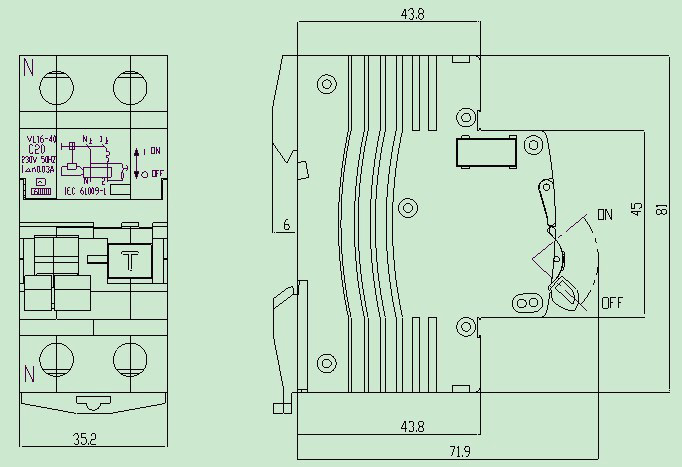

Overall and Mounting Dimensioned Chart
