PCB Relay
JQC-3F(T73)
JQC-3F(T73)

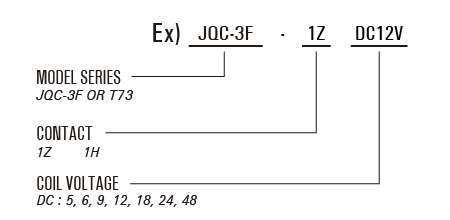

Order Code
Technical Data
>> Download PDF (150KB)
Coil Specification
| Coil Volatage | 5,6,9,12,18,24,48VDC |
| Rated Coil Power | 0.36W (48VDC 0.51W) |
Technical Specification
| Insulation Resistance | ≥100mΩ (500VDC) |
| Dielectric strength | Between coil and contacts ≥1500VAC1min |
| Between open contacts ≥750VAC1min | |
| Operate/ Release time | ≤10ms/ 5ms |
| Terminal Type | PCB |
Contact Specification
| Contact Form | 1H/1Z |
| Contact Resistance | ≤100mΩ (1A 6VDC) |
| Contact Material | AgCdO, AgSnO2 |
| Contact Capacity | 5A 240VAC/30VDC 10A 240VAC/28VDC |
Coil Date
| Nominal voltage VDC |
Operate voltage VDC |
Release voltage VDC |
Coil resistance Ω±10% |
| 3 | 2.25 | 0.3 | 25 |
| 5 | 3.8 | 0.5 | 70 |
| 6 | 4.5 | 0.6 | 100 |
| 9 | 6.8 | 0.9 | 225 |
| 12 | 9.0 | 1.2 | 400 |
| 18 | 13.5 | 1.8 | 900 |
| 24 | 19.0 | 2.4 | 1600 |
| 48 | 36.0 | 4.8 | 4500 |

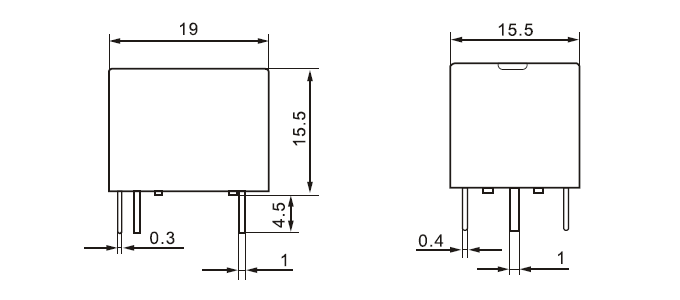

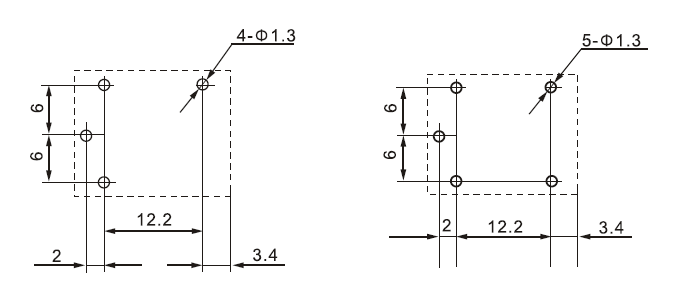

Dimension
 |
 |

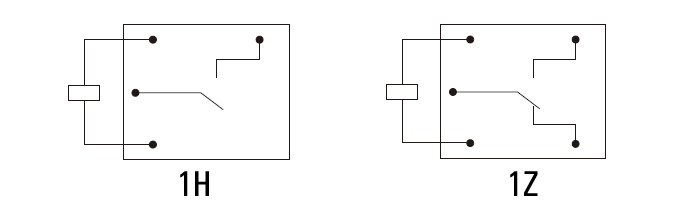

Wiring Diagram
 |
