Octagon Insulator
OI Series

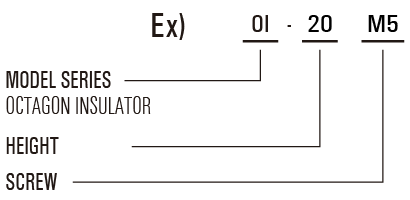

Classification models


Feature
- Variety of Color
- Variety of Screw M5, M6, M8, M10, M12
- Made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC),
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
Technical Data

Type | Dimension (mm) | Screw (mm) | Tensile strength (LBS) |
Voltage withstand (KV) |
Torgue strength (FT LBS) |
|||||

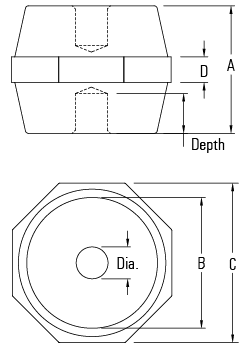

A | B | C | D | Fig. | Dia. | Depth | ||||
OI-20 | 20 | Φ12 | 15 | 6 | Fig. 1 | M5 | 7 | 300 | 4 | 4 |
OI-30 | 30 | Φ26 | 30 | 7 | Fig. 1 | M6 | 10 | 500 | 8 | 8 |
OI-40 | 40 | Φ24 | 30 | 8 | Fig. 1 | M6 | 13 | 550 | 8 | 10 |
OI-40A | 40 | Φ34 | 40 | 7 | Fig. 1 | M8 | 13 | 700 | 8 | 20 |
OI-40B | 40 | Φ41 | 50 | 8 | Fig. 1 | M10 | 14 | 1000 | 8 | 30 |
OI-50 | 50 | Φ44 | 55 | 10 | Fig. 1 | M10 | 17 | 1500 | 15 | 40 |
OI-55 | 55 | Φ40 | 60 | 10 | Fig. 1 | M10 | 17 | 2000 | 15 | 50 |
OI-70 | 70 | Φ39 | 50 | 10 | Fig. 1 | M10 | 17 | 1500 | 25 | 40 |
4000 Series

Feature
- Variety of Color
- Variety of Screw M5, M6, M8, M10, M12
- Made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC),
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
Technical Data

Type | Dimension (mm) | Screw (mm) | Tensile strength (LBS) |
Voltage withstand (KV) |
Torgue strength (FT LBS) |
|

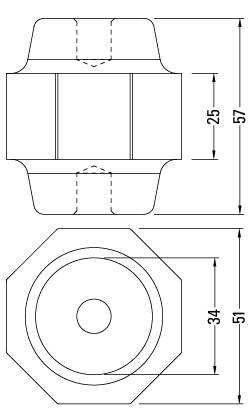

Fig. | Dia. | Depth | ||||
457 | Fig. 1 | M10, 3/8-16 | 15 | 1000 | 10 | 30 |
