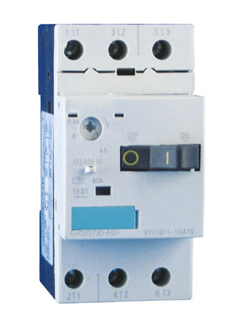

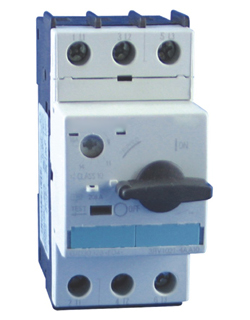

3RV

Application:

• DZS8(3RV) Series Motor Protection Circuit Breaker are mainly used for the overload, short-circuit and phase-failure protection for motors in the circuit of AC50/60Hz, Rated operating voltage up to 660V, Rated operating current from 0.11A to 25A. They can be also used for circuit protection in the circuit of 0.11 ~ 25A.

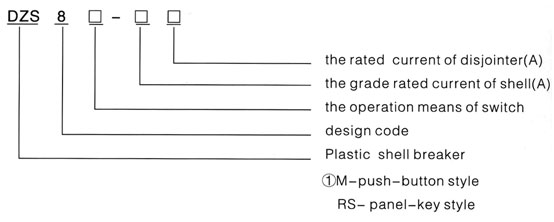

The Model No. and Meaning

Technical Data

Rated Current (A)	Applicable 3-phase AC electro motor 1)pn (KW)	Setting current scope of the overload releaser (A)	Momentar excess current releaser (A)	Short-circuit and breaking capacity under the AC400V (KA)	Circuit breaker Order NO.
0.16	0.04	0.11-0.16	2.1	100	3RV1011-0AA10
0.2	0.06	0.14-0.2	2.6	100	3RV1011-0BA10
0.25	0.06	0.18-0.25	3.3	100	3RV1011-0CA10
0.32	0.09	0.22-0.32	4.2	100	3RV1011-0DA10
0.4	0.09	0.28-0.4	5.2	100	3RV1011-0EA10
0.5	0.12	0.35-0.5	6.5	100	3RV1011-0FA10
0.63	0.18	0.45-0.63	8.2	100	3RV1011-0GA10
0.8	0.18	0.55-0.8	10	100	3RV1011-0HA10
1	0.25	0.7-1	13	100	3RV1011-0JA10
1.25	0.37	0.9-1.25	16	100	3RV1011-0KA10
1.6	0.55	1.1-1.6	21	100	3RV1011-0AA10
2	0.75	1.4-2	26	100	3RV1011-0BA10
2.5	0.75	1.8-2.5	33	100	3RV1011-0CA10
3.2	1.1	2.2-3.2	42	100	3RV1011-0DA10
4	1.5	2.8-4	52	100	3RV1011-0EA10
5	1.5	3.5-5	65	100	3RV1011-0FA10
6.3	2.2	4.5-6.3	82	100	3RV1011-0GA10
8	3	5.5-8	104	50	3RV1011-0HA10
10	4	7-10	130	50	3RV1011-0JA10
12	5.5	9-12	156	50	3RV1011-0KA10
0.16	0.04	0.11-0.16	2.1	100	3RV1021-0AA10
0.2	0.06	0.14-0.2	2.6	100	3RV1021-0BA10
0.25	0.06	0.18-0.25	3.3	100	3RV1021-0CA10
0.32	0.09	0.22-0.32	4.2	100	3RV1021-0DA10
0.4	0.09	0.28-0.4	5.2	100	3RV1021-0EA10
0.5	0.12	0.35-0.5	6.5	100	3RV1021-0FA10
0.63	0.18	0.45-0.63	8.2	100	3RV1021-0GA10
0.8	0.18	0.55-0.8	10	100	3RV1021-0HA10
1	0.25	0.7-1	13	100	3RV1021-0JA10
1.25	0.37	0.9-1.25	16	100	3RV1021-0KA10
1.6	0.55	1.1-1.6	21	100	3RV1021-0AA10
2	0.75	1.4-2	26	100	3RV1021-0BA10
2.5	0.75	1.8-2.5	33	100	3RV1021-0CA10
3.2	1.1	2.2-3.2	42	100	3RV1021-0DA10
4	1.5	2.8-4	52	100	3RV1021-0EA10
5	1.5	3.5-5	65	100	3RV1021-0FA10
6.3	2.2	4.5-6.3	82	100	3RV1021-0GA10
8	3	5.5-8	104	100	3RV1021-0HA10
10	4	7-10	130	100	3RV1021-0JA10
12.5	5.5	9-12	163	100	3RV1021-0KA10
16	7.5	11-16	208	50	3RV1021-0AA10
20	7.5	14-20	260	50	3RV1021-0BA10
22	11	17-22	286	50	3RV1021-0CA10
25	11	20-25	325	50	3RV1021-0DA10

1) The recommended data for 4-phase standard electromotor under the condition of AC50Hz, 400V. What affects the products most is the factual starting data and rated sata of the protected electomotor.

The protection characteristic against over-current of the breaker

The multiple of rated current	Starting state	Stipulated time	Prospective result	The temp. of ambient air
1.05	Cold state	t≤2h	No disjointing	+20°C ±2°C
1.2	Hot state(rises up to the stipulated current after following the test of no. 1)	t<2h	Disjointing	+20°C ±2°C
1.5	One-time commuting current starts after the thermal equilibrium	t<2min	Disjointing	+20°C ±2°C
7.2	Cold state	t<2≤10s	Disjointing	+20°C ±2°C

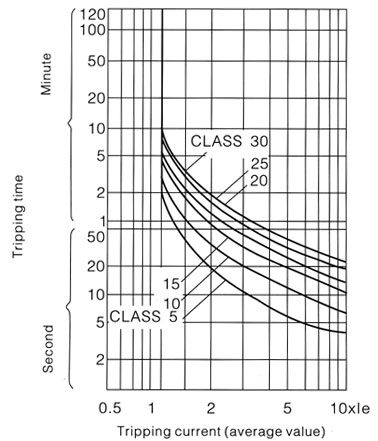

Tripping Current (Average Value)

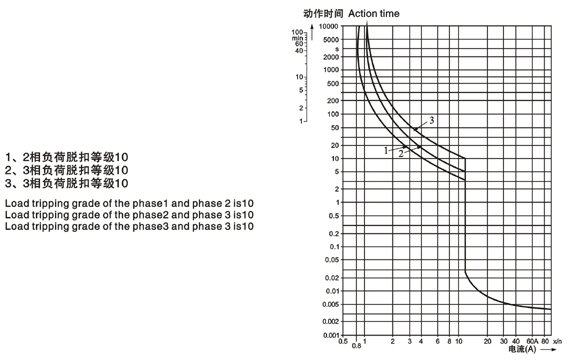

Characteristic curves

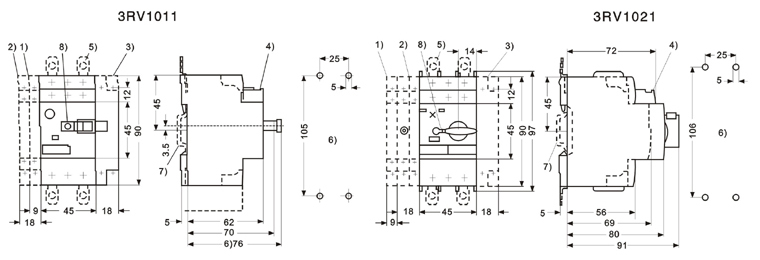

Dimensioned

• 1) 2-pole side supplementary switch;
• 2) Signal switch or 4-pole side supplementary switch;
• 3) Supplementary releaser;
• 4) Transverse supplementary contact;
• 5) Patching slice for screw installation;
• 6) Punching template;
• 7) 35m DIN-rail installation;
• 8) Lock the location of breaking the diameter of the staple is 3.5mm or 4.5mm.
