LE1-D

Application

• LE1-D series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance.
• It complies to IEC947-4-1.

Specifications

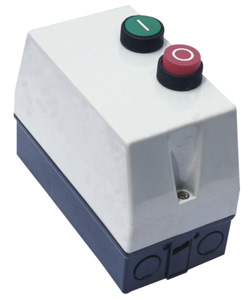

Product mode No.and specificatiol	LE1-09 and 12	Double in sulated,protected to IP429(3) or IP659(4)

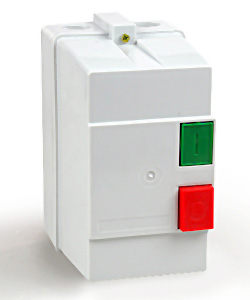

Enclosure	LE1-18 and 25	Double in sulated,protected to IP427(3) or IP557(4)
	LE1-32 ~ 95	Metal, IP55 to IP559
Control(2 push buttons moufited on enclosure cover)	LE1-09 ~ 95	1 Green start button ’I’, 'I' Red stop/Teset buttion "O"
Connections	LE1-09 ~ 95	Electricol power and control recircuit connections

Standard control circuit voltages

Volts	24	42	48	110	220/230	230	240	380/400	400	415	440
50/60Hz	B7	D7	E7	F7	M7	P7	U7	Q7	V7	N7	R7

Maximum power AC3 duty(KW)						Rated current (A)	Type of enclosure	Code number		Suitable thermal relay
220V 230V	380V 400V	415V	440V	500V	660V 690V			Long Life	Normal life
2.2	4	4	4	4	4	9	IP42 IP65	LE1-D094 LE1-D093		LR2 D1312 LR2 D1314
3	5.5	5.5	5.5	5.5	5.5	12	IP45 IP55	LE1-D124 LE1-D123	LE1-D094 LE1-D093	LR2 D1316
4	7.5	9	9	10	10	18	IP42 IP55	LE1-D188 LE1-D185	LE1-D124 LE1-D123	LR2 D1321
5.5	11	11	11	15	15	25	IP42 IP55	LE1-D258 LE1-D255	LE1-D188 LE1-D185	LR2 D1322 LR2 D2353
7.5	15	15	15	18.5	18.5	32	IP55	LE1-D325	LE1-D258 LE1-D255	LR2 D2355
11	18.5	22	22	22	30	40	IP55	LE1-D405	LE1-D325	LR2 D3353 LR2 D3355
15	22	25	30	30	33	50	IP55	LE1-D505	LE1-D405	LR2 D3357 LR2 D3359
18.5	30	37	37	37	37	65	IP55	LE1-D655	LE1-D505	LR2 D3361
22	37	45	45	55	45	80	IP55	LE1-D805	LE1-D655	LR2 D3363 LR2 D3365
25	45	45	45	55	45	95	IP55	LE1-D955	LE1-D805	LR2 D3365

Dimensioned

GMW

Application

• LE1-D series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance.
• It complies to IEC947-4-1.

Specifications

Type

Rated power(kW)

Rated current(A)

AC1 Duty (A)

Setting current (A)

AC3 Duty

AC3 Duty

220V~ 220V

380V~ 440V

500V~ 550V

220V~ 220V

380V~ 440V

500V~ 550V

M-5CP

3.7

7.5

9

13

12

12

20

2 ~ 4 4 ~ 8 8 ~ 16

Type	Rated power(kW)					Rated current(A)			AC1 Duty
	1pole motor		AC3 Duty			AC3 Duty
	110V	220V	200V~ 220V	380V~ 440V	500V~ 550V	200V~ 220V	380V~ 440V	500V~ 550V	A
GMW-9(B)	0.4	0.8	2.5	4	4	11	9	7	20
GMW-12(B)	0.5	1	3.5	5.5	7.5	13	12	12	20
GNW-18(B)	0.75	1.5	4.5	7.5	7.5	18	18	13	25
GMW-22(B)	0.9	1.8	5.5	11	15	22	22	22	32
GMW-32(B)	1.2	-	7.5	15	18.5	32	32	28	50
GMW-40(B)	1.7	-	11	18.5	22	40	40	32	60
GMW-50(B)	-	-	15	22	30	55	50	43	80
GMW-65(B)	-	-	18.5	30	37	65	65	60	100
GMW-75(B)	-	-	22	37	45	75	75	64	110
GMW-85(B)	-	-	25	45	45	85	85	75	135
GMW-100(B)	-	-	30	55	55	105	105	85	150
GMW-125(B)	-	-	37	60	60	125	120	90	150

Type		Rated power (kW)					Rated current (A)			AC1 Duty
		1pole moter		AC3 Duty			AC3 Duty
Without PB	Push button type	110V	220V	220V ~ 220V	380V ~ 440V	500V ~ 550V	220V ~ 220V	380V ~ 440V	500V ~ 550V	A
GMW-9M	GMW-9MB	0.4	0.8	2.5	4	4	11	9	7	20
GMW-112M	GMW-12MB	0.5	1	3.5	5.5	7.5	12	12	12	20
GMW-18M	GMW-18MB	0.75	1.5	4.5	7.5	7.5	18	18	13	25
GMW-22M	GMW-22MB	0.9	1.8	5.5	11	15	22	22	22	32
