RL Series

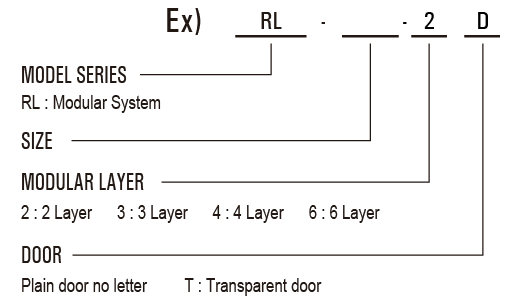

Classification models

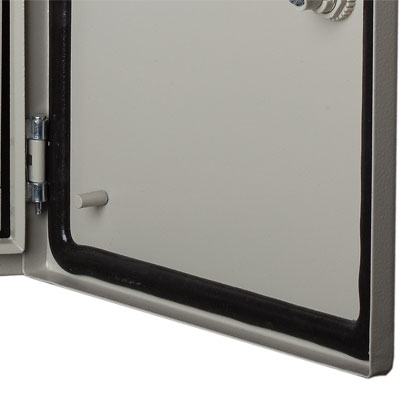

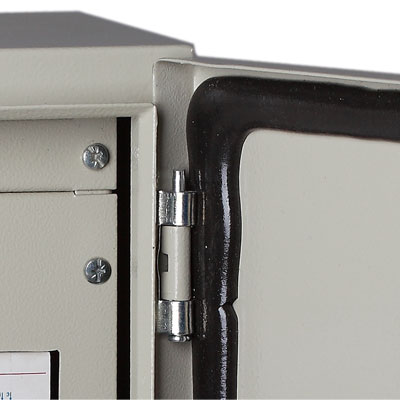

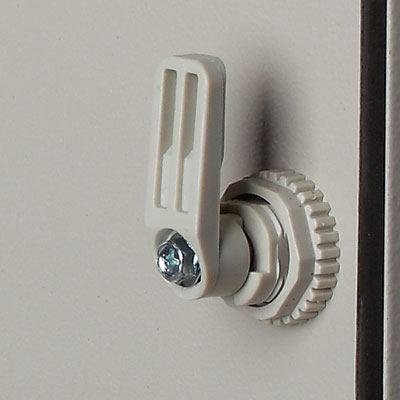

Feature
- IP55 protection rating - more info on IP ratings
- Epoxy polyester powder coating textured finishi
- RAL 7032 textured finish
- Modular system assembly for modular switchgear, with adjustable symmetrical distance betwen sections of 35mm and cover plate from 40 to 85mm depending on user requirements.
References and details of enclosures
| Dimension(mm) | Modular layer | No. of breaker | ||
| Height (H) |
Width (W) |
Depth (D) |
||
| 400 | 300 | 150 | 2 | 24 |
| 500 | 400 | 150 | 3 | 48 |
| 600 | 400 | 150 | 3 | 48 |
| 600 | 600 | 150 | 3 | 84 |
| 750 | 500 | 150 | 3 | 66 |
| 750 | 500 | 150 | 4 | 88 |
| 800 | 600 | 150 | 4 | 84 |
| 800 | 600 | 150 | 4 | 112 |
| 1000 | 600 | 150 | 6 | 168 |
| 1000 | 800 | 150 | 6 | 240 |
-
Note:
- Other size can customization
- Tansparent door depth >150mm
