FK77

Model Reference

Technical Data

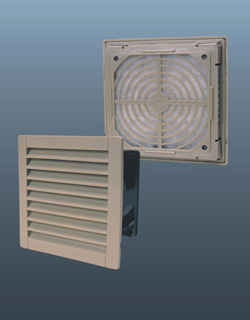

Fand Filter Type FK	7721.230	7721.115	7721.024
Working Voltage V/ Hz	230V 50/60Hz	115V 50/60Hz	24(DC)
Air flow, free blowing	20/25m3/h
Flux of air equip filter exproted include filtering pad of standard	1xFK 7721.300; 15/18m3/h
Axial Fan	Self-start screened magnetic pole motor		Direct current motor
Rated Current	0.09A	0.16A	0.18A
Power	15W/12W		4.3W
Noise level	41/46dB(A)
Scope of temperature	-10°C ~ 55°C
Exit Filter Type FK	7721.300

Dimensioned

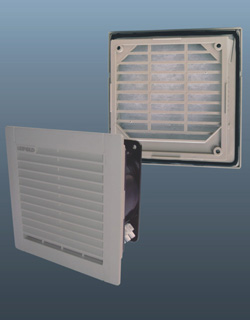

Fand Filter Type FK	7722.100	7722.115	7722.024
Working Voltage V/ Hz	230V 50/60Hz	115V 50/60Hz	24(DC)
Air flow, free blowing	55/66m3/h
Flux of air equip filter exproted include filtering pad of standard	1xFK 7722.300; 43/50m3/h 2xFK 7722.300; 48/55m3/h
Axial Fan	Self-start screened magnetic pole motor		Direct current motor
Rated Current	0.12/0.11A	0.24/0.23A	0.15A
Power	19W/18W		3.5W
Noise level	46/49dB(A)
Scope of temperature	-10°C ~ 55°C
Exit Filter Type FK	7722.300

Dimensioned

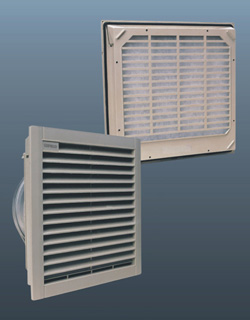

Fand Filter Type FK	7725.230	7725.115	7725.024
Working Voltage V/ Hz	230V 50/60Hz	115V 50/60Hz	24(DC)
Air flow, free blowing	230/265m3/h
Flux of air equip filter exproted include filtering pad of standard	1xFK7725.300; 170/205m3/h 2xFK7725.300; 200/230m3/h
Axial Fan	Self-start screened magnetic pole motor		Direct current motor
Rated Current	0.28/0.24A	0.53/0.19A	0.58A
Power	41W/38W		14W
Noise level	54/56dB(A)
Scope of temperature	-10°C ~ 55°C
Exit Filter Type FK	FK7725.300

Dimensioned

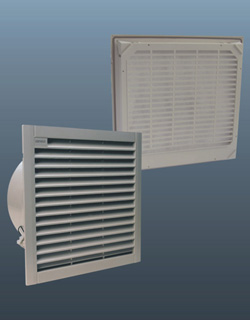

Fand Filter Type FK	7726.230	7726.115
Working Voltage V/ Hz	230V 50/60Hz	115V 50/60Hz
Air flow, free blowing	1020/1050m3/h
Flux of air equip filter exproted include filtering pad of standard	1xFK 7726.300; 550/580m3/h 2xFK 7726.300; 620/680m3/h
Axial Fan	Capacitance electromotion
Rated Current	0.55/0.60A	1.40/1.70A
Power	135/180W
Noise level	68/71dB(A)
Scope of temperature	-10°C ~ 55°C
Exit Filter Type FK	7726.300

Dimensioned
