Axial Blower Fan
Fast Order
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

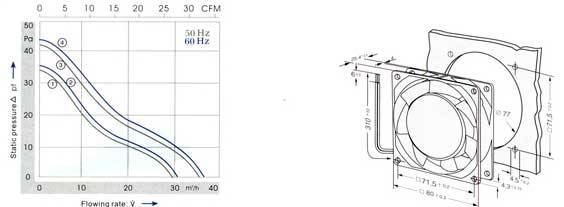

80x80x25mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 225g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing /  |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 0822ASN | 29 | 230 | 50 | 26 | |
10 | 1950 | -10..+70 | 50000/20000 | 1 | |
| 0822ABN | 29 | 230 | 50 | 26 | |
10 | 1950 | -20..+80 | 52500/25000 | 1 | |
| 0822ASM | 35 | 230 | 50 | 30 | |
11.5 | 2150 | -10..+70 | 50000/20000 | 3 | |
| 0822ABM | 35 | 230 | 50 | 30 | |
11.5 | 2150 | -20..+85 | 52500/35000 | 3 | |
| 0821ASN | 30 | 115 | 60 | 27 | |
11 | 2050 | -10..+70 | 50000/25000 | 2 | |
| 0821ABN | 30 | 115 | 60 | 27 | |
11 | 2050 | -20..+80 | 52500/27500 | 2 | |
| 0821ASM | 36 | 115 | 60 | 31 | |
12 | 2300 | -10..+75 | 50000/25000 | 4 | |
| 0821ABM | 36 | 115 | 60 | 31 | |
12 | 2300 | -20..+85 | 55000/35000 | 4 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

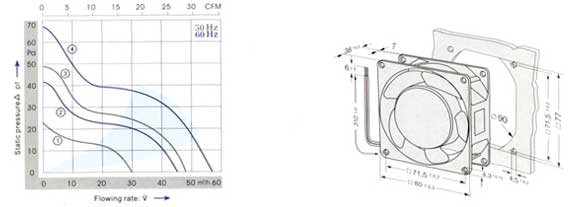

80x80x38mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 300g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 0832ASN | 30 | 230 | 50 | 26 | |
9 | 2100 | -10..+70 | 40000/25000 | 1 | |
| 0832ABN | 30 | 230 | 50 | 31 | |
9 | 2100 | -20..+80 | 52500/25000 | 1 | |
| 0832ASH | 48 | 230 | 50 | 36 | |
11.5 | 2300 | -10..+70 | 50000/20000 | 3 | |
| 0832ABH | 48 | 230 | 50 | 37 | |
11.5 | 2300 | -20..+85 | 55500/35000 | 3 | |
| 0831ASN | 36 | 115 | 60 | 29 | |
10 | 2200 | -10..+70 | 50000/25000 | 2 | |
| 0831ABN | 36 | 115 | 60 | 34 | |
10 | 2200 | -20..+80 | 52500/27500 | 2 | |
| 0831ASH | 57 | 115 | 60 | 41 | |
12 | 2400 | -10..+75 | 50000/25000 | 4 | |
| 0831ABH | 57 | 115 | 60 | 42 | |
12 | 2400 | -20..+85 | 55000/35000 | 4 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

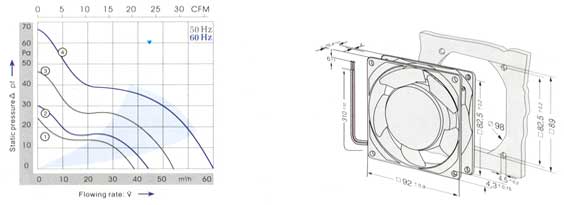

92x92x25mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 260g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 0922ASN | 35 | 230 | 50 | 30 | |
9 | 1850 | -20..+70 | 50000/25000 | 1 | |
| 0922ABN | 35 | 230 | 50 | 30 | |
9 | 1850 | -10..+80 | 52500/25000 | 1 | |
| 0922ASH | 49 | 230 | 50 | 36 | |
12 | 2350 | -10..+70 | 50000/25000 | 3 | |
| 0922ABH | 49 | 230 | 50 | 36 | |
12 | 2350 | -20..+85 | 52500/35000 | 3 | |
| 0921ASN | 43 | 115 | 60 | 31 | |
11 | 2300 | -10..+70 | 50000/25000 | 2 | |
| 0921ABN | 43 | 115 | 60 | 31 | |
11 | 2300 | -10..+80 | 55000/27500 | 2 | |
| 0921ASH | 60 | 115 | 60 | 37 | |
12 | 2550 | -10..+70 | 50000/25000 | 4 | |
| 0921ABH | 60 | 115 | 60 | 37 | |
12 | 2550 | -20..+85 | 55000/35000 | 4 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

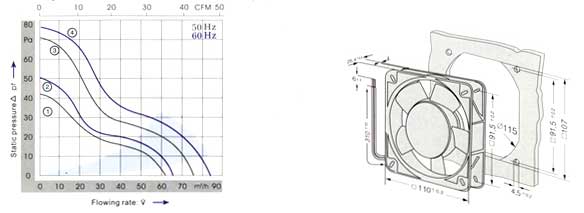

108x108x25
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 260g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 1122ASN | 61 | 230 | 50 | 36 | |
13 | 2000 | -10..+70 | 40000/25000 | 1 | |
| 1122ABN | 61 | 230 | 50 | 36 | |
13 | 2000 | -20..+80 | 42500/35000 | 1 | |
| 1122ASH | 75 | 230 | 50 | 38 | |
15 | 2250 | -10..+70 | 42500/25000 | 3 | |
| 1122ABH | 75 | 230 | 50 | 38 | |
15 | 2250 | -30..+85 | 50000/35000 | 3 | |
| 1121ASN | 64 | 115 | 60 | 36 | |
14 | 2150 | -10..+70 | 42500/20000 | 2 | |
| 1121ABN | 64 | 115 | 60 | 36 | |
14 | 2150 | -20..+80 | 50000/27500 | 2 | |
| 1121ASN | 82 | 115 | 60 | 38 | |
15.5 | 2450 | -10..+75 | 50000/25000 | 4 | |
| 1121ABN | 82 | 115 | 60 | 38 | |
15.5 | 2450 | -30..+90 | 55000/35000 | 4 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

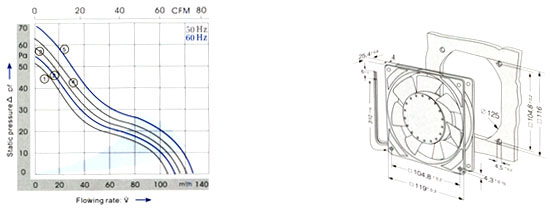

120x120x25mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 350g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 1223ASH | 120 | 380 | 50 | 38 | |
15.5 | 2200 | -10..+70 | 35000/15000 | 3 | |
| 1223ABH | 120 | 380 | 50 | 38 | |
15.5 | 2200 | -20..+80 | 50000/25000 | 3 | |
| 1222ASN | 108 | 230 | 50 | 35 | |
14 | 2100 | -10..+70 | 40000/20000 | 1 | |
| 1222ABN | 108 | 230 | 50 | 35 | |
14 | 2100 | -20..+80 | 52500/25000 | 1 | |
| 1222ASH | 125 | 230 | 50 | 38 | |
16 | 2250 | -10..+70 | 40000/20000 | 4 | |
| 1222ABH | 125 | 230 | 50 | 38 | |
16 | 2250 | -20..+80 | 52500/25000 | 4 | |
| 1221ASN | 115 | 115 | 60 | 36 | |
15 | 2200 | -10..+70 | 52500/20000 | 2 | |
| 1221ABN | 115 | 115 | 60 | 36 | |
15 | 2200 | -20..+80 | 55000/27500 | 2 | |
| 1221ABH | 130 | 115 | 60 | 39 | |
16.5 | 2350 | -10..+70 | 55000/25000 | 5 | |
| 1221ABH | 130 | 115 | 60 | 39 | |
16.5 | 2350 | -20..+80 | 55000/27500 | 5 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

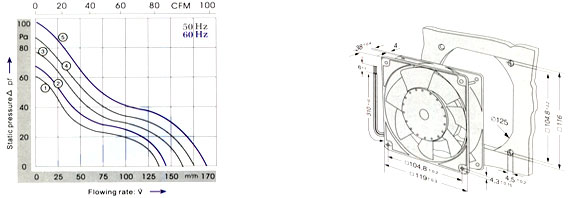

120x120x38mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 505g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 1233ASN | 135 | 380 | 50 | 43 | |
21 | 2400 | -10..+70 | 40000/20000 | 1 | |
| 1233ABN | 135 | 380 | 50 | 43 | |
21 | 2400 | -20..+80 | 52500/25000 | 1 | |
| 1233ASH | 160 | 380 | 50 | 48 | |
22 | 2600 | -10..+70 | 45000/22000 | 4 | |
| 1233ABH | 160 | 380 | 50 | 48 | |
22 | 2600 | -20..+85 | 52500/30000 | 4 | |
| 1232ASN | 140 | 230 | 50 | 44 | |
21 | 2350 | -10..+70 | 45000/25000 | 2 | |
| 1232ABN | 140 | 230 | 50 | 44 | |
21 | 2350 | -20..+80 | 52500/35000 | 2 | |
| 1232ASH | 155 | 230 | 50 | 49 | |
22 | 2550 | -10..+70 | 52500/25000 | 3 | |
| 1232ABH | 155 | 230 | 50 | 49 | |
22 | 2550 | -20..+85 | 52500/35000 | 3 | |
| 1231ASN | 140 | 115 | 60 | 44 | |
22 | 2350 | -10..+70 | 42500/25000 | 2 | |
| 1231ABN | 140 | 115 | 60 | 44 | |
22 | 2350 | -20..+80 | 55000/27500 | 2 | |
| 1231ASH | 165 | 115 | 60 | 49 | |
23 | 2650 | -10..+70 | 55000/25000 | 5 | |
| 1231ABH | 165 | 115 | 60 | 49 | |
23 | 2650 | -20..+90 | 55000/27500 | 5 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

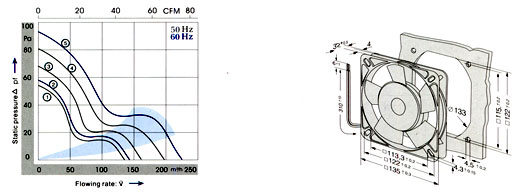

135x135x32mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 520g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 1333ASH | 230 | 380 | 50 | 48 | |
26 | 2550 | -10..+70 | 45000/20000 | 4 | |
| 1333ABH | 230 | 380 | 50 | 48 | |
26 | 2550 | -20..+85 | 55000/30000 | 4 | |
| 1332ASN | 180 | 230 | 50 | 45 | |
24.5 | 2300 | -10..+70 | 40000/20000 | 1 | |
| 1332ABN | 180 | 230 | 50 | 45 | |
24.5 | 2300 | -20..+80 | 52500/35000 | 1 | |
| 1332ASH | 210 | 230 | 50 | 49 | |
25 | 2450 | -10..+70 | 52500/25000 | 3 | |
| 1332ABH | 210 | 230 | 50 | 49 | |
25 | 2450 | -20..+85 | 52500/35000 | 3 | |
| 1331ASN | 190 | 115 | 60 | 45 | |
24.5 | 2350 | -10..+70 | 42500/20000 | 2 | |
| 1331ABN | 190 | 115 | 60 | 45 | |
24.5 | 2350 | -20..+80 | 55000/37500 | 2 | |
| 1331ASH | 240 | 115 | 60 | 49 | |
26 | 2650 | -10..+75 | 55000/20000 | 5 | |
| 1331ABH | 240 | 115 | 60 | 49 | |
26 | 2650 | -20..+90 | 55000/35000 | 5 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

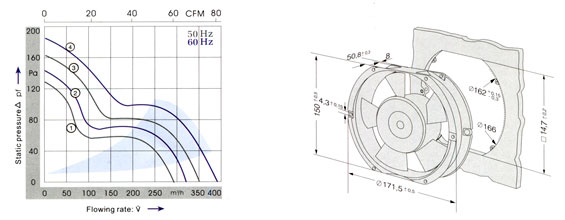

150x150x51mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 898g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 1553ABN | 280 | 380 | 50 | 53 | |
26 | 2450 | -30..+80 | 48000/32000 | 1 | |
| 1553ABH | 340 | 380 | 50 | 54 | |
29 | 2600 | -30..+60 | 37500/20000 | 3 | |
| 1552ASN | 280 | 230 | 50 | 50 | |
24 | 2450 | -10..+55 | 30000/15000 | 1 | |
| 1552ABN | 280 | 230 | 50 | 50 | |
24 | 2450 | -20..+80 | 52500/35000 | 1 | |
| 1552ABH | 340 | 230 | 50 | 54 | |
26.5 | 2600 | -30..+65 | 42500/18000 | 3 | |
| 1551ABN | 320 | 115 | 60 | 54 | |
26 | 2650 | -20..+80 | 52500/25000 | 2 | |
| 1551ABH | 370 | 115 | 60 | 55 | |
28 | 2850 | -20..+60 | 45000/20500 | 4 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

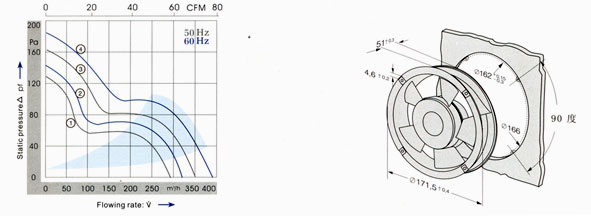

172x150x51mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 928g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 1753ABN | 280 | 380 | 50 | 54 | |
26 | 2450 | -30..+80 | 40000/30000 | 1 | |
| 1753ABH | 340 | 380 | 50 | 58 | |
28 | 2600 | -30..+60 | 37500/18000 | 3 | |
| 1752ASN | 280 | 230 | 50 | 53 | |
24.5 | 2450 | -10..+55 | 25000/15000 | 1 | |
| 1752ABN | 280 | 230 | 50 | 53 | |
24.5 | 2450 | -20..+80 | 52500/25000 | 1 | |
| 1752ABH | 340 | 230 | 50 | 58 | |
28 | 2600 | -30..+55 | 32500/15000 | 3 | |
| 1751ABN | 320 | 115 | 60 | 55 | |
26 | 2650 | -20..+80 | 52500/25000 | 2 | |
| 1751ABH | 370 | 115 | 60 | 58 | |
28 | 2850 | -20..+50 | 35000/17500 | 4 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

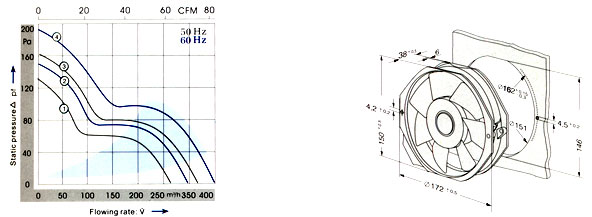

172x145x38mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 928g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 1733ABN | 300 | 380 | 50 | 52 | |
29 | 2550 | -20..+65 | 60000/32000 | 1 | |
| 1733ABH | 350 | 380 | 50 | 52 | |
29 | 2700 | -20..+75 | 55000/20000 | 3 | |
| 1732ASN | 300 | 230 | 50 | 52 | |
26 | 2550 | -10..+70 | 40000/18000 | 1 | |
| 1732ABN | 300 | 230 | 50 | 55 | |
27 | 2550 | -20..+80 | 55000/22500 | 1 | |
| 1732ABH | 350 | 230 | 50 | 56 | |
29 | 2700 | -20..+85 | 55000/22500 | 3 | |
| 1731ASN | 330 | 115 | 60 | 54 | |
27 | 2700 | -20..+80 | 50000/20000 | 2 | |
| 1731ABH | 390 | 115 | 60 | 56 | |
29 | 3100 | -20..+85 | 50000/25000 | 4 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.

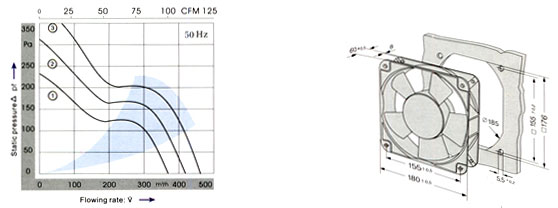

180x180x60mm
- Electrical motor: Shaded pole motor structure. Impedance protect
- Frame: Casting Al-alloy with black paint, anti-corrosion, anti-oxidization
- Fan leaf: Once moulded by pour mold, PBT+30% grass firbe+VO anti-burning preparation
- Withstand voltage: Creep age current: 0.5mA, withstand voltage 1800V/MIN
- Insulating grade: B
- Protecting grade: IP54
- The settting bolt of fan: M4X8
- Weight of Unit fan: 1556g
Technical Data
| Type | Air Flow (m3/h) |
Volatage (V) |
Frequency (Hz) |
Noise (dB(A)) |
Ball bearing /Sleeve bearing / |
Power (W) |
Speed (min-1) |
Temperature (°C) |
Life (Hous) |
Curve | |
| 1863ABM | 420 | 380 | 50 | 58 | |
48 | 2400 | -20..+60 | 35000/20000 | 2 | |
| 1863ABH | 420 | 380 | 50 | 59 | |
49 | 2550 | -20..+55 | 30000/18000 | 3 | |
| 1862ABN | 370 | 230 | 50 | 56 | |
45 | 2300 | -20..+60 | 35000/25000 | 1 | |
| 1862ABM | 420 | 230 | 50 | 59 | |
48 | 2400 | -20..+55 | 32500/18000 | 2 | |
| 1682ABH | 450 | 230 | 50 | 59 | |
49 | 2550 | -20..+55 | 30000/17000 | 3 | |
- All kinds of technical parameter are related with setting sates and environment, Samples parameter are got from the standard experiment test, so they are only used for comparison.
- Power supply: wires and switches connection.
- Leafrotating direction: counter-clockwise looking from the leaf.
