JS Series

Classification models

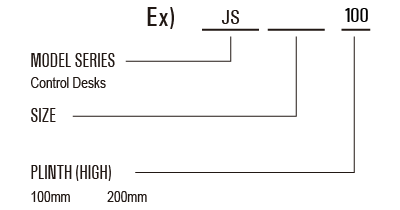

    Meaning and classification models
    Note: Optional of plinth system

Feature

  • Several variations for plant floor applications
  • Robust design offering IP55 (NEMA 12) Protection
  • Front & Rear access on most models
  • Complete with mounting plates
  • Optional 100 or 200mm plinth system

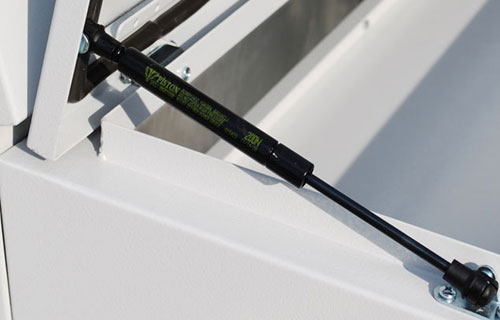

    Hydraulic rod

References and details of enclosures

Dimension(mm) No. of door 1)Plinth 100mm H 1)Plinth 200mm H
Height
(H)		 Width
(W)		 Depth
(D)
942 600 490 1 PL64/100 PL64/200
942 800 490 1 PL84/100 PL84/200
942 1000 490 2 PL104/100 PL104/200
942 1200 490 2 PL124/100 PL124/200
1400 800 814 1 PL84/100 PL84/200
1400 1000 814 1 PL104/100 PL104/200
1400 1200 814 2 PL124/100 PL124/200
1400 1600 814 2 PL164/100 PL164/200
    Note:
  • Other size can customization
  • 1) for Optional
