About Capacitive Switch

Capacitive Switches

The new CP Series Capacitive switch technology senses the touch of a finger and creates an electrical charge to activate the switch. An auto-calibration function ensures the sensor adapts to changing external environments. LANGIR's capacitive switches are specially designed for durability and a low activation force. As sensitive as a touch screen, the capacitive switches are perfect for industrial applications where repetitive activation can cause operator fatigue.

Features:
Activated by the easy touch of a finger, the capacitive switches extremely to use
Adjustable sensitivity sensor adapts to external environments
Easy-to-locate or on/off indication is possible through independent or output image LED functionality
Easy to clean because the switch is impervious to dust and dirt, and resistant to harsh chemicals and contaminants
50 million cycles and no moving mechanical parts make LANGIR's CP Switches robust and durable
Available in momentary or latching and with or without illumination

Benefits:
Extreme ease of use/ Adaptable/ Easy-locate or on/off indication/ Easy to clean/ Robust and durable

Applications

In and out of water applications
Medical equipment
Testing equipment
Automatic gas pumps
Mining equipment
Car wash systems
Control panels
Packaging
Cosmetics
Paints
Petrochemical
Fertilizers
Pharmaceutical

Bakeries
Dairies
Food packing
Food Preparation
Meat processing
Gate access
Process control
Public telephones
Security doors
Irrigation systems
Locomotive control panels
Vending machines

Technical Characteristics:

Environmental

Sealing: IP68 and IP69K according to IEC60529
Triggered by flowing water
Impact resistance: IK10
Operating temperature: -20°C to +65°C
ESD: complies with EN61000-4-2 (extended) ± 8KV (20 contacts) and ± 15KV (20 air discharges)

Electrical:

ax. Current/voltage rating: 200mA 24VDC
Supply voltage: 5 to 24VDC
Life expectancy: 50 million cycles
Operating force: 0N
Output type: NPN
Momentary/ Latching
Normally Open/ Normally Closed

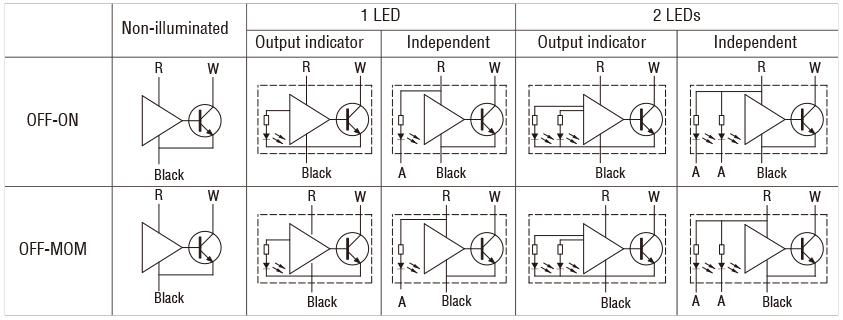

Wiring diagram:

Legend:
R red +V
Black black GND
W white output
A = same colour as LED
