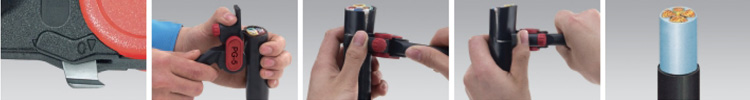

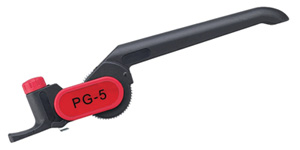

Cable Knife

PG-5

PG-5

Features:

• For removing all layers of insulation on cables with diameters of ≥25mm.
• Suitable for longitudinal and circular cutting.
• Cutting depth can be adjusted from 0~5mm.
• Replaceable blade (Can be used on both sides).

Technical Data

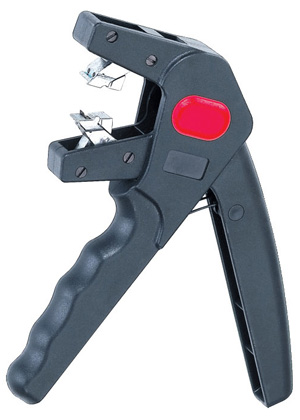

Self-Adjusting Insulation Strippers

WS-16

WS-16

Features:

• For stripping the plastic or rubber insulation of the singe,multiple cables and wires of 6-16mm².
• Stripping diameter can be adjusted automatically for different wire cross sections.
• With wire cutter for copper and aluminum wires,multiple strand up to 16mm², single strand up to 6mm².
• With easy changeable blade, plastic jaws and adjustable length stop.
• Shock-resistant glass fiber and plastic boby.
• No damaging of the conductor core, long life time.

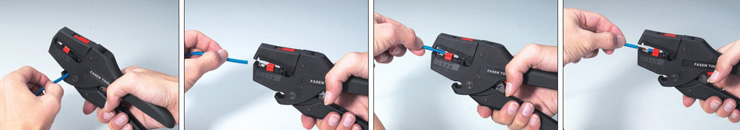

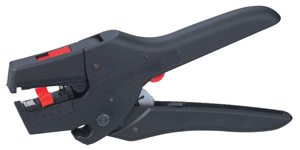

FS-D3

FS-D3

Features:

• For stripping the plastic or rubber insulation of the singe,multiple cables and wires of 0.08-6mm².
• Stripping diameter can be adjusted automatically for different wire cross sections.
• With wire cutter for copper and aluminum wires,multiple strand up to 6mm², Single strand up to 0.08mm²
• With easy changeable blade, plastic jaws and adjustable length stop.
• Shock-resistant glass fiber and plastic boby.
• No damaging of the conductor core, long life time.

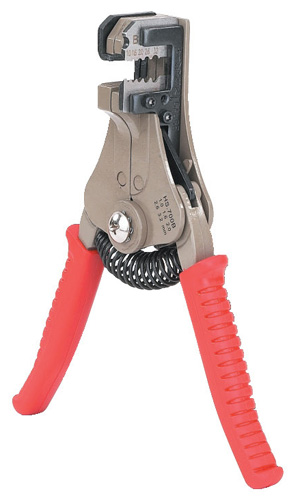

Automatic Cable Strippers

HS-700B, HS-700A, HS-700N

Features:

• Stripping range:0.5-6mm².
• Precise blade design without damaging the conductor cores.
• During stripping,the wire is held firm by clamping jaws.
• With adjustable lenght stop.
• With a spring returns the stripper to the starting position.
• Long lifetime.

Technical Data

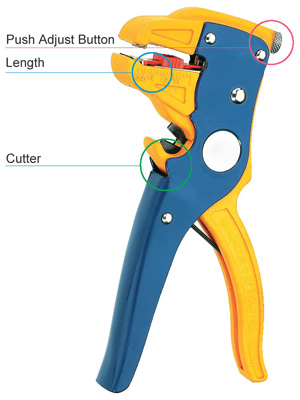

HS-700D

HS-700D

Features:

• Stripping range: 0.5-2.5mm².
• Stripping diameter can be adjusted automatically for different wire cross sections.
• Precise blade design without damaging the conductor cores.
• During stripping,the wire is held firm by clamping jaws.
• With adjustable lenght stop.
• With a spring returns the stripper to the starting position.
• Long lifetime.

Technical Data
