AD

Working Condition

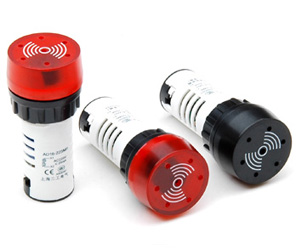

Buzzer

1. Ambient temperature: -25°C ~ +55°C
2. Relative humidity: ≤98%
3. Normally workable when vibration frequency is 2-80Hz with acceleration of 0.7g
4. Pollution degree is 3, Installation group is Ⅲ


Technical data

1. Power frequency with stand voltage: 2.5KV per min. (effective AC value)
2. Insulation resistance: ≥2MΩ
3. Allowable voltage fluctuation: ±20%
4. CTI≥100
5. Frequency: AC50～60Hz


16mm

Shape	Number	Type	Voltage	Dimension	Remarks
	AD16-B/▲	Buzzer	AC/DC6V AC/DC12V AC/DC24V AC/DC36V AC/DC48V AC/DC110V AC/DC220V AC/DC380V AC110V AC220V AC380V		Sound Intensity: Volume≥80dB(10cm) Continuous Buzz Incontinuous BuzzIe ≤35mA ▲ : For Voltage
	AD16-F/▲	Flicker Lamp
	AD16-FB/▲	Flicker Buzzer

22mm

Shape	Number	Type	Voltage	Dimension	Remarks
	AD22-B/▲	Buzzer	AC/DC6V AC/DC12V AC/DC24V AC/DC36V AC/DC48V AC/DC110V AC/DC220V AC/DC380V AC110V AC220V AC380V		Sound Intensity: Volume≥80dB(10cm) Continuous Buzz Incontinuous BuzzIe ≤35mA ▲ : For Voltage
	AD22-F/▲	Flicker Lamp
	AD22-FB/▲	Flicker Buzzer
